CB-19027:

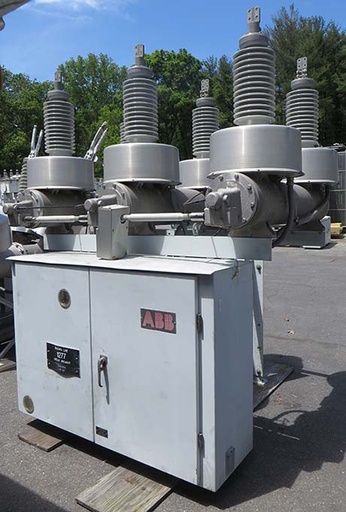

ONE (1) 2000 AMP ABB SF6 CIRCUIT BREAKER
TYPE 48 PM 40-20
48300 V MAX. VOLTAGE
5 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
60 HERTZ
250 KV BIL
3010 LBS. WITH GAS
25 LBS. OF GAS
50 PSIG MIN. OPER. PRESSURE

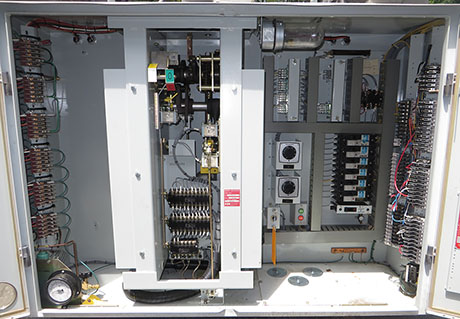

FSA-2 MECHANISM
125 VDC CLOSE & TRIP
120 VAC MOTOR
6 X 1200:5 MRCT'S CLASS C-400
AC/DC TRANSFER UPON LOSS OF AC SUPPLY
INSTRUCTION BOOK 33-200A
WIRING DIAGRAM 989D508
