2000 Amp, ABB, No. 48 PM 31-20, 48300 V., 1998, SF6, 125 VDC, 31.5kA Short   Our stock number: 45537

2000 Amp, ABB, No. 48 PM 31-20, 48300 V., 1998, SF6, 125 VDC, 31.5kA Short

Click on picture below for larger version
2000 Amp, ABB, No. 48 PM 31-20, 48300 V., 1998, SF6, 125 VDC, 31.5kA Short2000 Amp, ABB, No. 48 PM 31-20, 48300 V., 1998, SF6, 125 VDC, 31.5kA Short

CB-19892

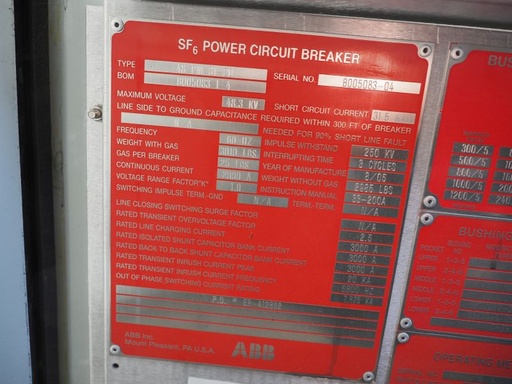

One (1) 2000 Amp ABB SF6 Circuit Breaker
48.3kV
60hz
48 PM 31-20
250kV BIL
1.0 Voltage Factor
3 Cycle Interrupt
31.5kA Short

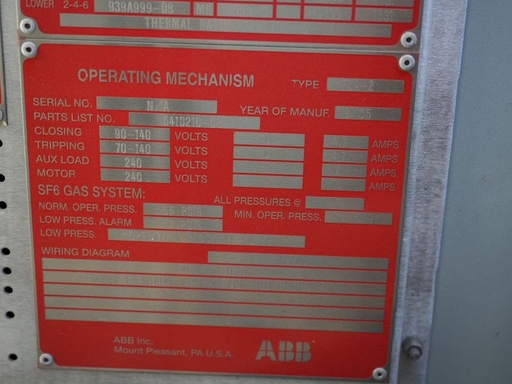

FSA-2 Mechanism
125 VDC Close and Trip
240 VAC Motor
6x 3000:5 MRCTs C800
65 PSIG Norm Oper Pressure
53 Low Press Alarm
50 Min Oper Pressure




Total Weight: 3010LBS
Weight w/o Gas: 2985LBS
Gas Per Breaker: 25LBS
