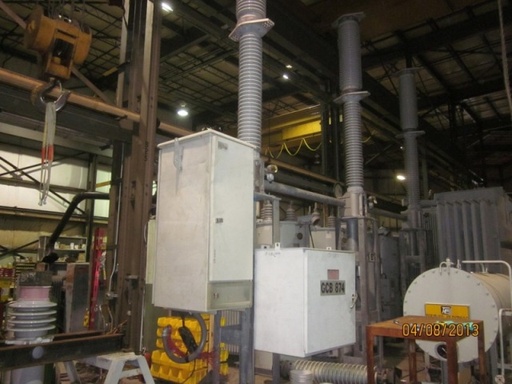

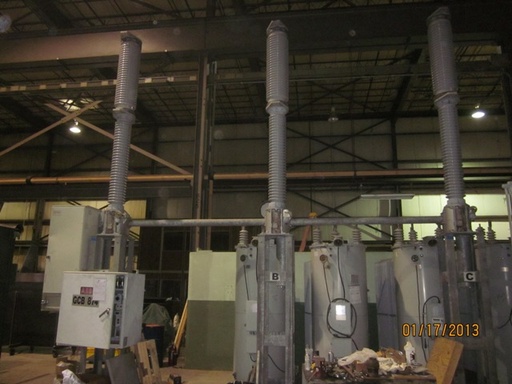

2000 Amp, ABB, HPL-170A1, 170 KV, 1996, SF6, 40 KAIC, 125 VDC C&T, LIVE TANK:1   Our stock number: 36044

2000 Amp, ABB, HPL-170A1, 170 KV, 1996, SF6, 40 KAIC, 125 VDC C&T, LIVE TANK:1

Click on picture below for larger version
2000 Amp, ABB, HPL-170A1, 170 KV, 1996, SF6, 40 KAIC, 125 VDC C&T, LIVE TANK:12000 Amp, ABB, HPL-170A1, 170 KV, 1996, SF6, 40 KAIC, 125 VDC C&T, LIVE TANK:1

CB-16806

ONE (1) 2000 AMP ABB SF6 BREAKER
TYPE HPL-170A1
LIVE TANK
170 KV
40 KAIC
750 KV BIL
INT. TIME 2.3 CYCLES
MECHANISM TYPE BLG 1002A
90-140 VDC CLOSE, 2.4 AMPS
70-140 VDC TRIP, 2.4 AMPS
120 VAC MOTOR, 20 AMPS
73 PSIA OPERATING PRESSURE

7,621 LBS. WITHOUT GAS
24 LBS. OF GAS
WIRING #9980146
PARTS LIST 5432160-KW
S/N 102595-03
