2000 Amp, ABB, 72PMI-31-20, 72 KV, 1999, 125 VDC CLOSE & TRIP, HMB-1.2S   Our stock number: 40870

2000 Amp, ABB, 72PMI-31-20, 72 KV, 1999, 125 VDC CLOSE & TRIP, HMB-1.2S

Click on picture below for larger version
2000 Amp, ABB, 72PMI-31-20, 72 KV, 1999, 125 VDC CLOSE & TRIP, HMB-1.2S2000 Amp, ABB, 72PMI-31-20, 72 KV, 1999, 125 VDC CLOSE & TRIP, HMB-1.2S

CB-18340:

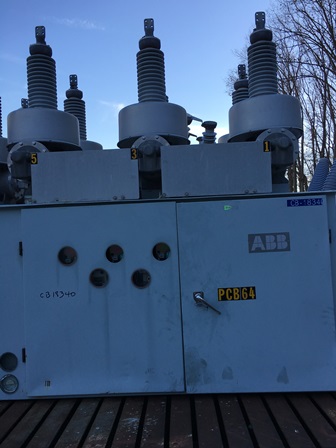

ONE (1) 2000 AMP ABB SF6 CIRCUIT BREAKER
TYPE 72PMI-31-20
72.5 KV VOLTS MAX.
31.5 KAIC
350 KV BIL
1.0 RANGE FACTOR
HMB-1.2S MECHANISM
125 VDC CLOSE & TRIP
125 VDC MOTOR
SYNCHRONOUS CONTROL UNIT
4,552 LBS. WITH GAS
25 LBS. OF GAS
6 X 2000:5 MRCT'S TYPE BYM C800
INSTRUCTION MANUAL 33-600A-SCU7
