2000 Amp, ABB, 145 KV, 145PM40-20B, ABB SF6 POWER CIRCUIT BREAKER, 40 KAIC   Our stock number: 45493

2000 Amp, ABB, 145 KV, 145PM40-20B, ABB SF6 POWER CIRCUIT BREAKER, 40 KAIC

Click on picture below for larger version
2000 Amp, ABB, 145 KV, 145PM40-20B, ABB SF6 POWER CIRCUIT BREAKER, 40 KAIC2000 Amp, ABB, 145 KV, 145PM40-20B, ABB SF6 POWER CIRCUIT BREAKER, 40 KAIC2000 Amp, ABB, 145 KV, 145PM40-20B, ABB SF6 POWER CIRCUIT BREAKER, 40 KAIC


CB-19880

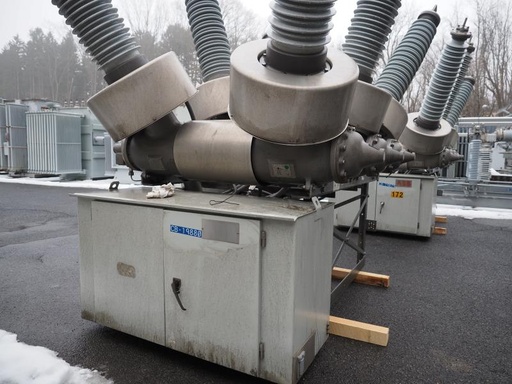

One (1) 2000 Amp ABB SF6 Circuit Breaker
145kV max
145PM40-20B
650kV BIL
1.0 "K" Factor
3 Cycle Interrupt
40kA Short
125VDC close and trip
120/125 VAC/VDC Motor
BLK222 Mechanism
12x 2000:5 MRCTs C800
87 PSIG Norm Oper Pressure
76 PSIG Low Press Alarm
72 PSIG Min Oper Pressure




TOTAL WEIGHT W/GAS: 6817 LBS
WEIGHT OF GAS: 64 LBS
DIMS: 126" H x 149" L x 86" W
