CB-18426:

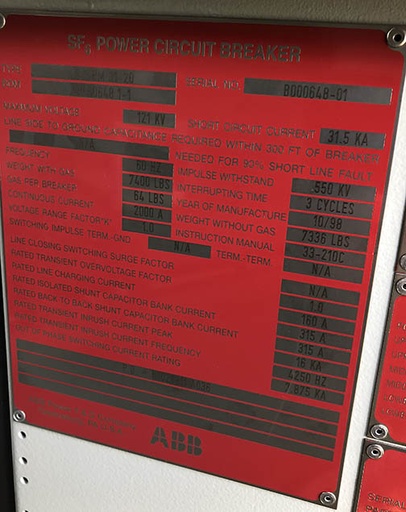

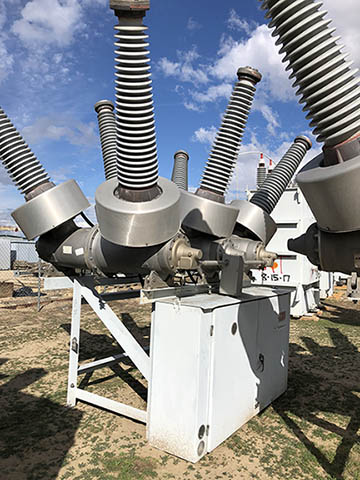

ONE (1) 2000 AMP ABB SF6 CIRCUIT BREAKER
TYPE 121PM31-20
121 KV MAX. VOLTAGE
31.5 KA SHORT CIRCUIT
3 PHASE
60 HERTZ
550 KV BIL
3 CYCLE INTERRUPT
1.0 RANGE FACTOR K
6,106 LBS. W/O GAS
6,170 LBS. WITH GAS
64 LBS. OF GAS
INST. MANUAL 33-210C

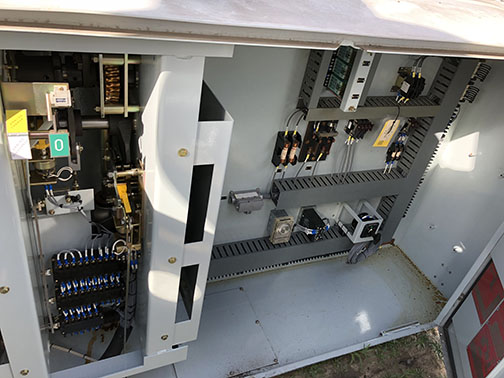

FSA-2 OPERATING MECHANISM
125 VDC CLOSE & TRIP
125 VDC MOTOR
3 X 2000:5A MRCT'S (C-800 ON 1200:5 TAP)
3 X 3000:5A MRCT'S (C-800 ON 2000:5 TAP)
