1600 Amp, HITACHI, HVB 242 31500, 242 KV, SF6, 125 VDC CLOSE & TRIP, SBS-3 MECH.   Our stock number: 36909

1600 Amp, HITACHI, HVB 242 31500, 242 KV, SF6, 125 VDC CLOSE & TRIP, SBS-3 MECH.

Click on picture below for larger version
1600 Amp, HITACHI, HVB 242 31500, 242 KV, SF6, 125 VDC CLOSE & TRIP, SBS-3 MECH.1600 Amp, HITACHI, HVB 242 31500, 242 KV, SF6, 125 VDC CLOSE & TRIP, SBS-3 MECH.1600 Amp, HITACHI, HVB 242 31500, 242 KV, SF6, 125 VDC CLOSE & TRIP, SBS-3 MECH.

CB-17145

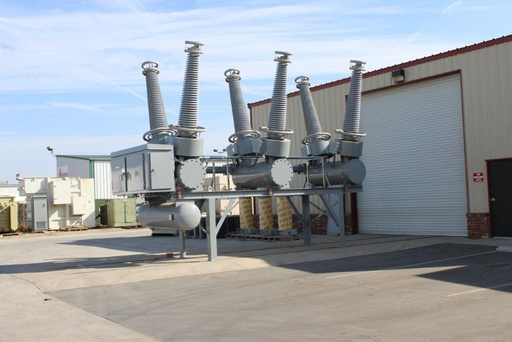

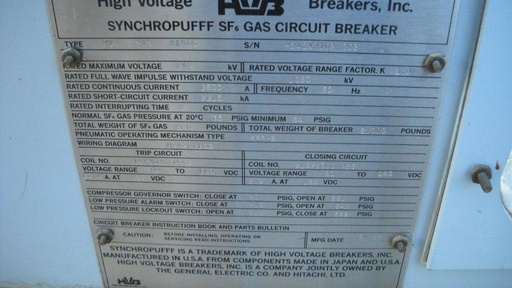

ONE (1) 1600 AMP HITACHI SF6 BREAKER
TYPE HVB 242 31500
242 KV
1050 KV BIL
60 HERTZ
31.5 KA SHORT CIRCUIT
3 CYCLES
75 PSIG AT 20 DEG. C
64 PSIG MIN.
224 LBS. OF SF6
21,000 LBS.

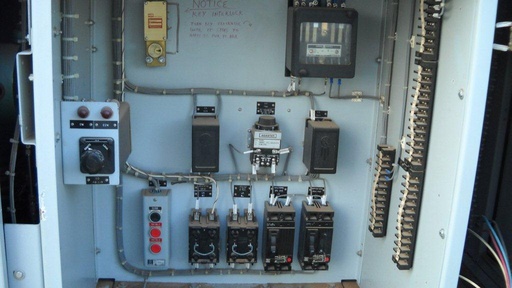

PNEUMATIC OPERATING MECHANISM TYPE SBS-3
125 VDC CLOSE & TRIP
INCLUDES 6 X CT'S

EXTRA CT'S AVAILABLE AT ADDITIONAL COST
