1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum 25kA short; Unused   Our stock number: 45467

1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum 25kA short; Unused

Click on picture below for larger version
1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum 25kA short; Unused1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum 25kA short; Unused1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum 25kA short; Unused


CB-19862

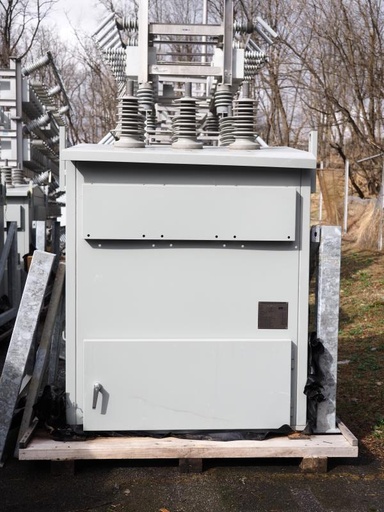

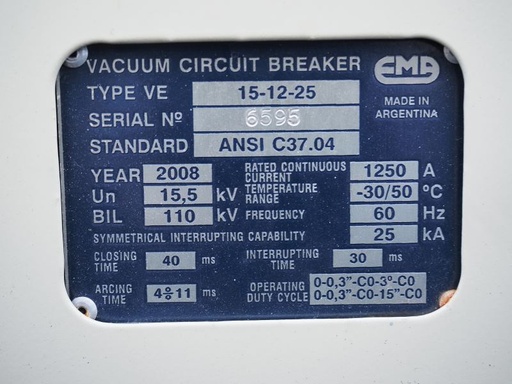

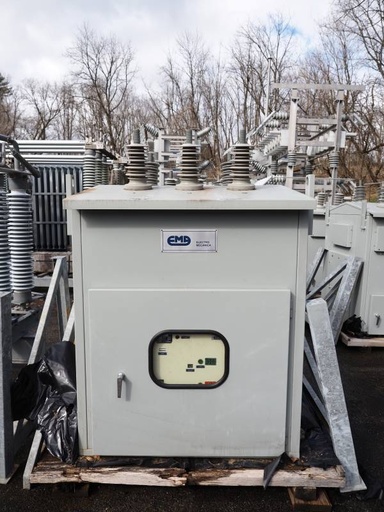

One (1) 1250 Amp EMA Unused Vacuum Circuit Breaker
15.5kV Max
VDH-15kV
60hz
25kA Short Sym
110kV BIL
Operating Voltage- 125 VDC
Aux Power 120/240VAC

ANSI C37.04

6x 1200:5 MRCTs c400
Polymer Bushings
