1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum, 25kA Short; Unused   Our stock number: 45465

1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum, 25kA Short; Unused

Click on picture below for larger version
1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum, 25kA Short; Unused1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum, 25kA Short; Unused1250 Amp, EMA, No. VDH-15kV, 15500 V., Vacuum, 25kA Short; Unused

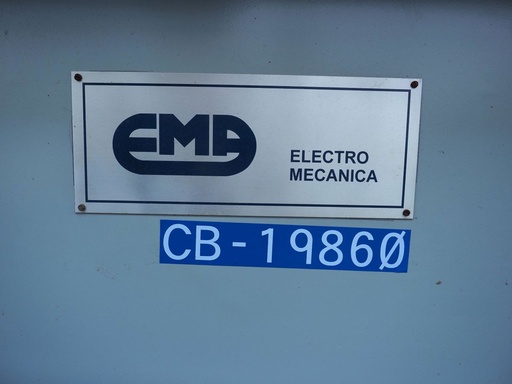

CB-19860

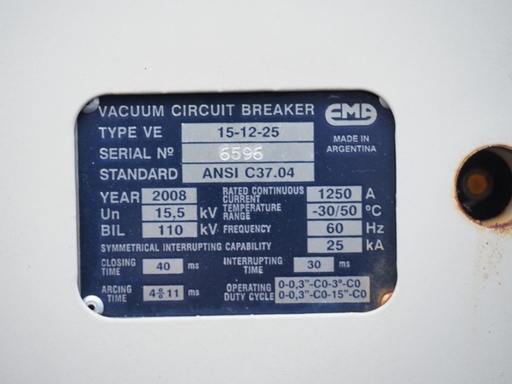

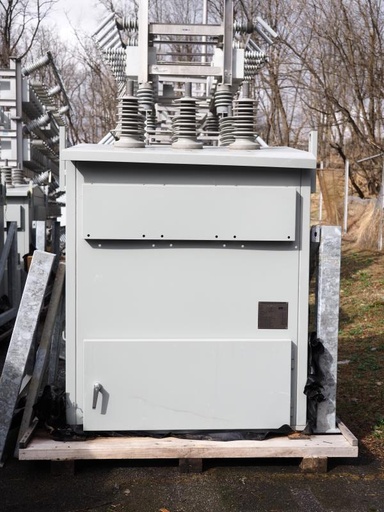

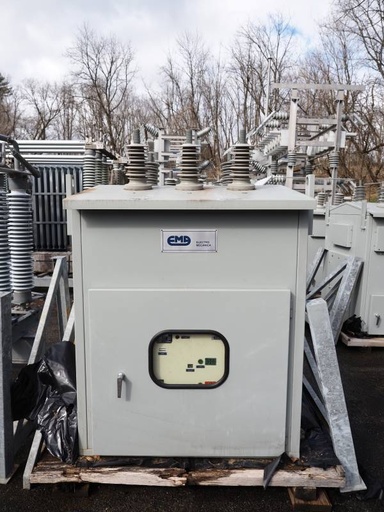

One (1) 1250 Amp EMA Unused Vacuum Circuit Breaker
15.5kV Max
VDH-15kV
60hz
25kA Short Sym
110kV BIL
Operating Voltage- 125 VDC
Aux Power 120/240VAC

6x 1200:5 MRCTs C400
Polymer Bushings
ANSI C37.04
