1200 Amp, WESTINGHOUSE, V, 38000 V., SUBSTATION VACUUM BREAKER   Our stock number: 45133

1200 Amp, WESTINGHOUSE, V, 38000 V., SUBSTATION VACUUM BREAKER

Click on picture below for larger version
1200 Amp, WESTINGHOUSE, V, 38000 V., SUBSTATION VACUUM BREAKER1200 Amp, WESTINGHOUSE, V, 38000 V., SUBSTATION VACUUM BREAKER

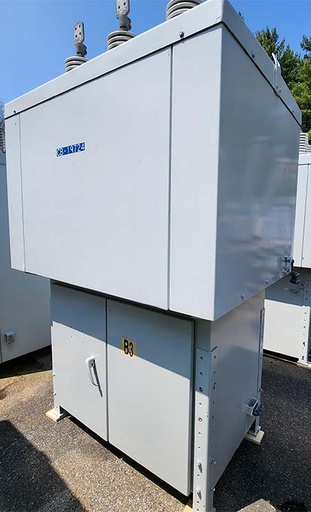

CB-19724

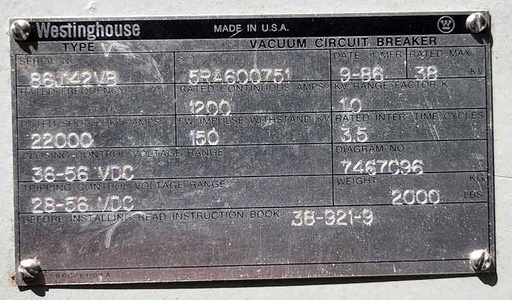

ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKERS
38 KV MAX
22 KA SHORT TIME
150 KV BIL
1.0 RATED K FACTOR
3.5 CYCLE INTERRUPTING
36-56 VDC CLOSING
28-56 VDC TRIP
TOTAL WEIGHT: 2000 LBS
DIAGRAM: 7468CO3


SEL 351S RELAY
48 VDC INPUT, 300V WYE/DELTA5-PH, 5-N
UL LISTED, CSA LISTED
