1200 Amp, SQUARE D, No. FVR1121120A, 15500 V., 2002, 125 VDC C/T, 240 VAC MOTOR   Our stock number: 44550

1200 Amp, SQUARE D, No. FVR1121120A, 15500 V., 2002, 125 VDC C/T, 240 VAC MOTOR

Click on picture below for larger version
1200 Amp, SQUARE D, No. FVR1121120A, 15500 V., 2002, 125 VDC C/T, 240 VAC MOTOR1200 Amp, SQUARE D, No. FVR1121120A, 15500 V., 2002, 125 VDC C/T, 240 VAC MOTOR


CB-19496

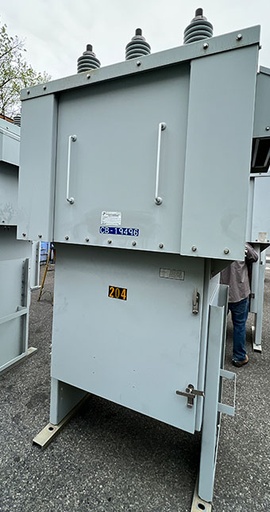

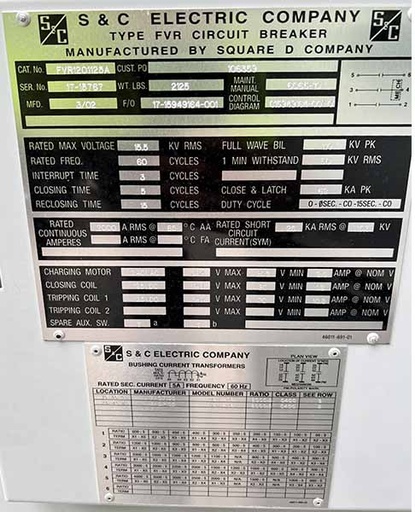

ONE (1) 1200 AMP SQUARE D VACUUM SUBSTATION CIRCUIT BREAKER
TYPE FVR1201125A
17 KV MAX
110 KV BIL
60 HERTZ
50 KV RMS
3 CYCLE INTERRUPT
68 KA CLOSE & LATCH
25 KA SHORT CIRCUIT
125 VDC CLOSE & TRIP
240 VAC CHARGING MOTOR
6 X 2000:5 MRCT CLASS 400
MFG. 2002
83 OPERATIONS
S/N 17-15767
2125 LBS
C25295425-001-01 CONTROL DIAGRAM<
6065-10 MAINTENANCE MANUAL
