1200 Amp, SQUARE D, No. FLUARC SF6, 34500 V., CAT. #FCS3121532   Our stock number: 41728

1200 Amp, SQUARE D, No. FLUARC SF6, 34500 V., CAT. #FCS3121532

Click on picture below for larger version
1200 Amp, SQUARE D, No. FLUARC SF6, 34500 V., CAT. #FCS31215321200 Amp, SQUARE D, No. FLUARC SF6, 34500 V., CAT. #FCS31215321200 Amp, SQUARE D, No. FLUARC SF6, 34500 V., CAT. #FCS3121532



CB-18665:

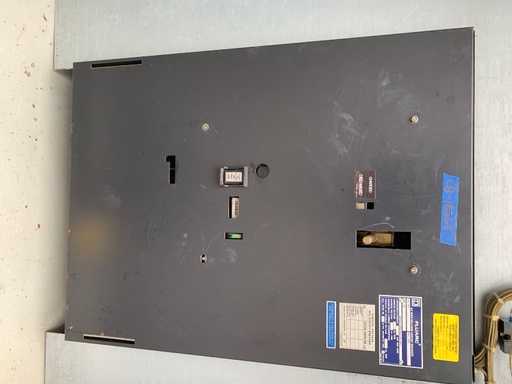

ONE (1) 1200 AMP SQUARE D FLUARC SF6 CIRCUIT BREAKER
800 OPERATINS AMPS
SUBSTATION TYPE
OUTDOOR ENCLOSURE WITH ROOF MOUNTED BUSHINGS & 800:5 AMP CT'S

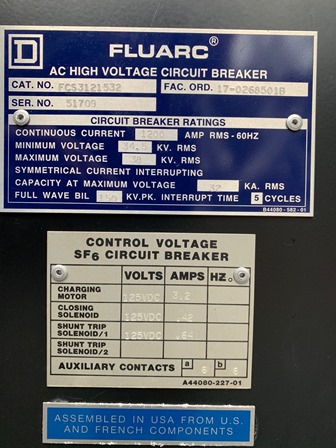

CAT. #FCS3121532
34.5 KV MINIMUM VOLTAGE
38 KV MAXIMUM VOLTAGE
60 HERTZ
32 KA RMS CAPACITY AT MAX. VOLTAGE INTERRUPT
150 KV BIL
5 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR

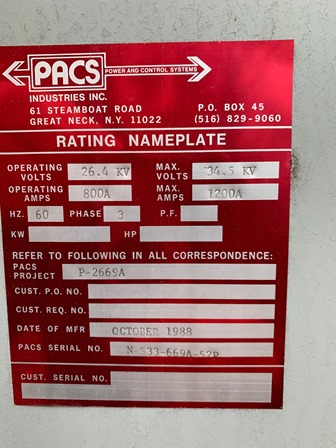

BUILT BY PAC'S SYSTEM
DIMENSIONS: 66"W X 66"D X 102"H (ADD 20" FOR BUSHINGS)<
