CB-18667:

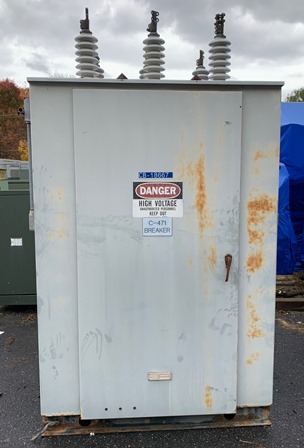

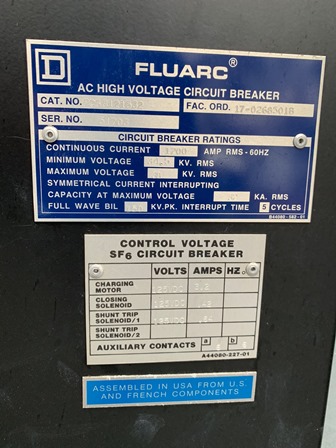

ONE (1) 1200 AMP SQUARE D FLUARC SF6 CIRCUIT BREAKER
800 OPERATING AMPS
CAT. #FCS3121532
34.5 KV MINIMUM VOLTAGE
38 KV MAXIMUM VOLTAGE
ROOF MOUNTED BUSHINGS
800:5 CT'S
60 HERTZ
32 KA RMS CAPACITY AT MAX. VOLTAGE INTERRUPT
150 KV BIL
5 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR

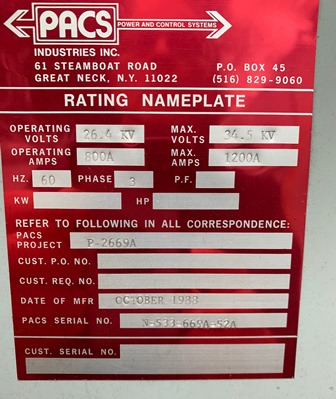

BUILT BY PAC'S SYSTEM
DIMENSIONS: 66"W X 66"D X 102"H (ADD 20" FOR BUSHINGS)<
