CB-18544:

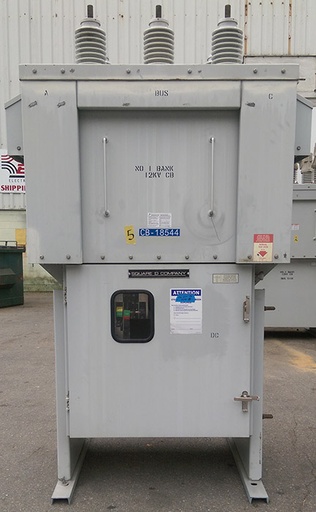

ONE (1) 1200 AMP SQUARE D VACUUM SUBSTATION CIRCUIT BREAKER
TYPE FVR1121125A
17 KV MAX
110 KV BIL
60 HERTZ
52 KV RMS
3 CYCLE INTERRUPT
68 KA CLOSE & LATCH
25 KA SHORT CIRCUIT
48 VDC CLOSE & TRIP
48 VDC CHARGING MOTOR
3 X 2000:5 C400 MRCT'S
3 X 1200:5 C200 MRCT'S
S/N 22580
2,000 LBS.
6065-10 MAINTENANCE MANUAL
