1200 Amp, SIEMENS, No. SPS-72.5-20-1, 72500 V., 1999, 125VDC C+T, FA2.20 Mech   Our stock number: 45373

1200 Amp, SIEMENS, No. SPS-72.5-20-1, 72500 V., 1999, 125VDC C+T, FA2.20 Mech

Click on picture below for larger version
1200 Amp, SIEMENS, No. SPS-72.5-20-1, 72500 V., 1999, 125VDC C+T, FA2.20 Mech1200 Amp, SIEMENS, No. SPS-72.5-20-1, 72500 V., 1999, 125VDC C+T, FA2.20 Mech1200 Amp, SIEMENS, No. SPS-72.5-20-1, 72500 V., 1999, 125VDC C+T, FA2.20 Mech


CB-19829

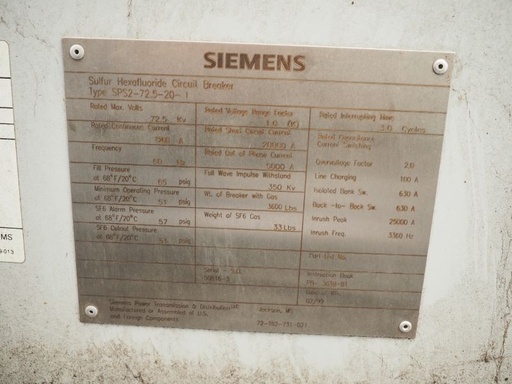

ONE (1) 1200 AMP SIEMENS SF-6 CIRCUIT BREAKER
72.5kV
SPS 72.5-20-1
60HZ
350kV BIL
1.0kA FACTOR
20kA SHORT
5kA OUT-OF-PHASE
3 CYCLE INTERRUPT
125VDC CLOSE AND TRIP

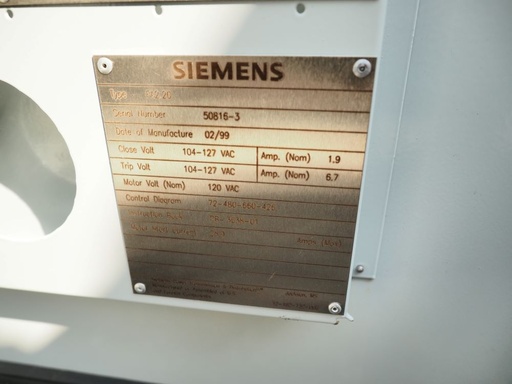

FA2.20 OPERATING MECHANISM
120VAC MOTOR
65 PSIG NORM. OPER. PRESSURE
57 PSIG LOW PRESSURE ALARM
51 PSIG MIN OPER. PRESSURE

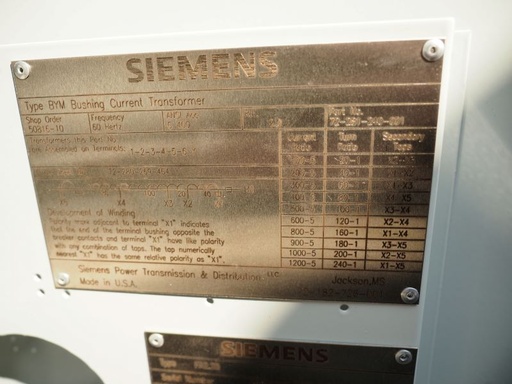

6x BYM 1200:5 MRCTs C 400
INSTRUCTION BOOK: PB-3638-01




TOTAL WEIGHT: 3600LBS
WEIGHT OF GAS: 33LBS
