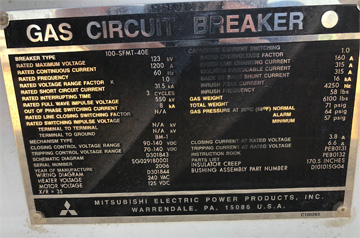

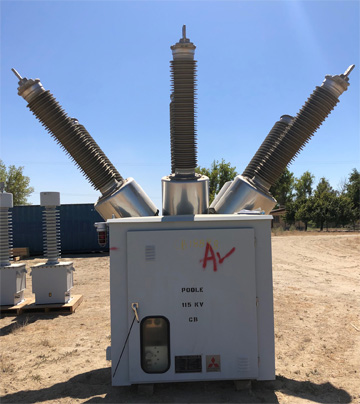

CB-18898:
ONE (1) 1200 AMP MITSUBISHI SF6 CIRCUIT BREAKER
TYPE 100-SFMT-40E
123 KV
550 KV BIL
60 HERTZ
1.0 RATED VOLTAGE RANGE FACTOR K
3 CYCLE INTERRUPT
31.5 KA SHORT CIRCUIT
125 VDC CLOSE & TRIP
125 VDC MOTOR
BM-1 MECHANISM
CAPACITANCE CURRENT SWITCHING -
1.0 RATED OVERVOLTAGE FACTOR
160 AMP RATED LINE CHARGING CURRENT
315 AMP ISOLATED BANK/CABLE CURRENT
315 BACK TO BACK SHUNT CURRENT
16 KA INRUSH PEAK CURRENT
4250 HZ INRUSH FREQUENCY
58 LBS. GAS WEIGHT
71 PSIG NORMAL GAS PRESSURE
64 ALARM GAS PRESSURE
57 PSIG MINIMUM GAS PRESSURE
6 X 1200:5 MRCT'S, C800
INSTRUCTION BOOK PEB0131
PARTS LIST PEB0132
WIRING DIAGRAM D301844
HEATER VOLTAGE 240 VAC
INSULATOR CREEP 170.5 INCHES
134"H x 101" x 138"
6100 lbs TOTAL WEIGHT
EXTRA CT'S AVAILABLE AT ADDITIONAL COST
