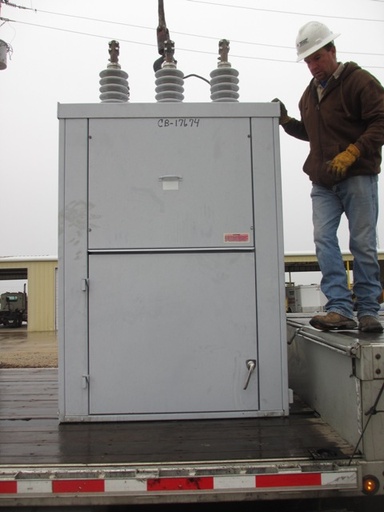

CB-17674

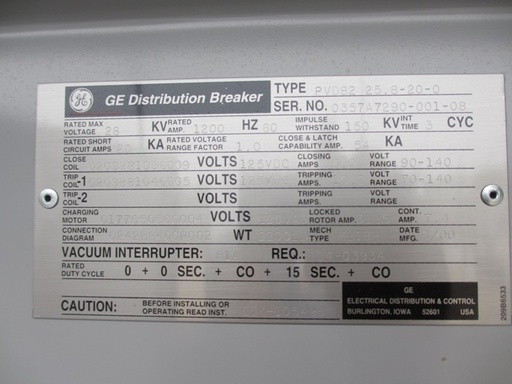

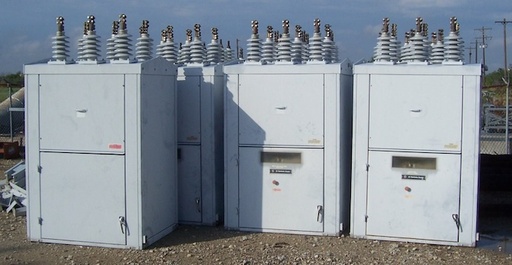

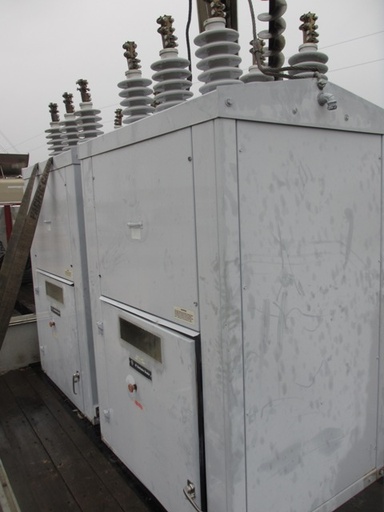

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE PVDB2 25.8-20-0
28 KV MAX. VOLTAGE
60 HERTZ
150 KV BIL
3 CYCLE INTERRUPT
20 KA SHORT CIRCUIT
1.0 VOLTAGE RANGE FACTOR
54 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
120 VAC CHARGING MOTOR
31.5 LOCKED ROTOR AMPS
CONNECTION DIAGRAM #0242B8400P002
2,200 LBS.
ML-18H MECHANISM
MFG. 06/2000

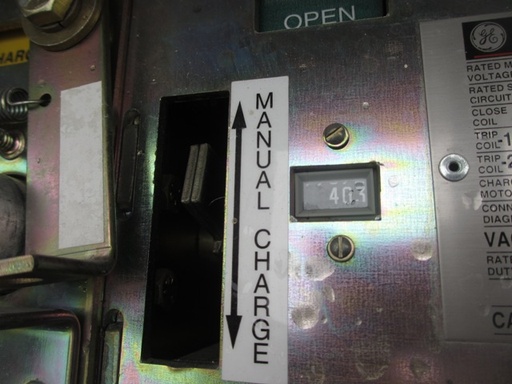

403 OPERATIONS
81 A VACUUM INTERRUPTER
GEK-105495
S/N 0357A7290-001-08
DIMENSIONS: 129"H x 56"W x 43.5"D (HEIGHT INCLUDES 30" REMOVABLE LEGS)
