1200 Amp, GE, PVDB1 15.5-20-2, 15500 V., 1996, VACUUM SUBSTATION: PARTS ONLY   Our stock number: 36463

1200 Amp, GE, PVDB1 15.5-20-2, 15500 V., 1996, VACUUM SUBSTATION: PARTS ONLY

Click on picture below for larger version
1200 Amp, GE, PVDB1 15.5-20-2, 15500 V., 1996, VACUUM SUBSTATION: PARTS ONLY1200 Amp, GE, PVDB1 15.5-20-2, 15500 V., 1996, VACUUM SUBSTATION: PARTS ONLY

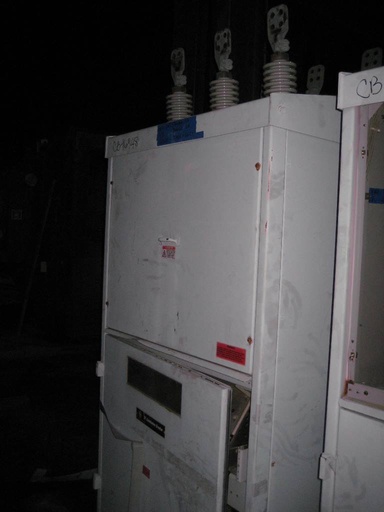

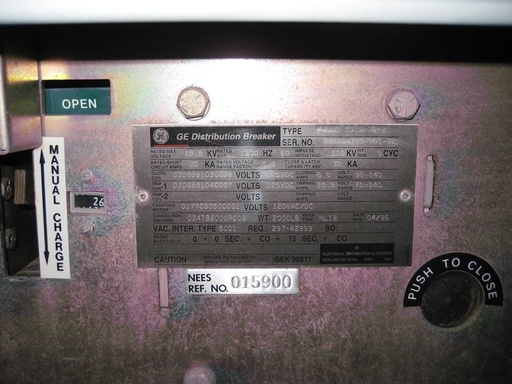

ONE (1) - GENERAL ELECTRIC VACUUM SUBSTATION CIRCUIT BREAKER
- 15.5KV MAX
- 1200A
- TYPE PVDB1 15.5-20-2
- 125VDC CLOSE & TRIP
- ML 18 OPERATING MECHANISM
- 110KV BIL
- 5 CYCLE INTERRUPT
- 32KA CLOSE & LATCH
- 20KA SHORT CIRCUIT
- 1.0 VOLTAGE FACTOR
- 120V AC/DC CHARGING MOTOR
- SIX (6) 2000:5 MULTI-RATIO CT'S
-
- VAC INTERRUPTER TYPE 50D1

DIMENSIONS: 92"H x 47"W x 47"D
