CB-19714

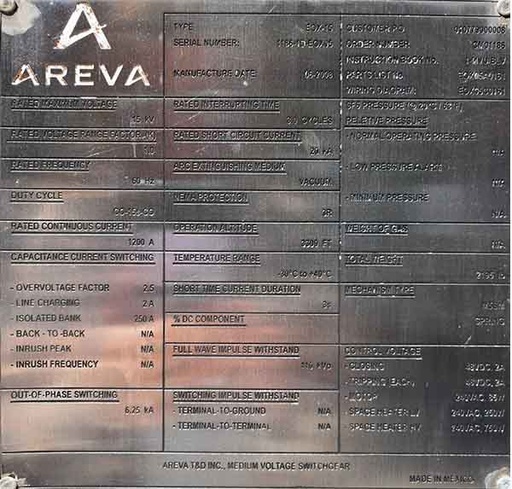

ONE (1) 1200 AMP AREVA VACUUM BREAKERS
TYPE EOX-15
15 KV MAX
3.0 CYCLE INTERRUPTING
20 KA INTERRUPT
1.0 RATED K FACTOR
3 SEC SHORT TIME
110 KV BIL
6.25 KA OUT OF PHASE
(6) 1200/5 MRCT'S, C400, TCA3-1200M2, 10 KV BIL
M5SM SPRING TYPE MECHANISM
240 VAC MOTOR
48 VDC CLOSE AND TRIP
INSTR BOOK: 1-MVUBLV
WIRING DIAGRAM: EOX05C0161
TOTAL WEIGHT: 2195 LBS
SEL 351S RELAY METER CONTROL FAULT RELAY
48 VDC INPUT, 300V WYE/DELTA5-PH, 5-N
UL LISTED, CSA LISTED
DIMS: 49.6"L x 47.3"W x 96"H (AVAILABLE WITH 24" EXTENDABLE LEGS)
