600 Amp, WESTINGHOUSE, 230GC500, 23 KV, 1973, 125 VDC C & T, SINGLE TANK, SAH4   Our stock number: 37520

600 Amp, WESTINGHOUSE, 230GC500, 23 KV, 1973, 125 VDC C & T, SINGLE TANK, SAH4

Click on picture below for larger version
600 Amp, WESTINGHOUSE, 230GC500, 23 KV, 1973, 125 VDC C & T, SINGLE TANK, SAH4600 Amp, WESTINGHOUSE, 230GC500, 23 KV, 1973, 125 VDC C & T, SINGLE TANK, SAH4600 Amp, WESTINGHOUSE, 230GC500, 23 KV, 1973, 125 VDC C & T, SINGLE TANK, SAH4



CB-17381

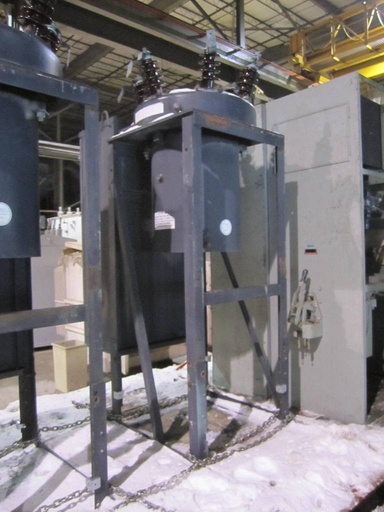

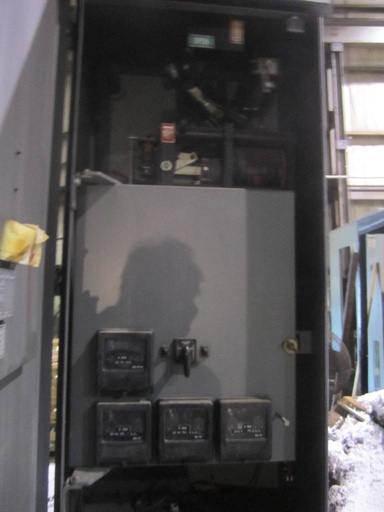

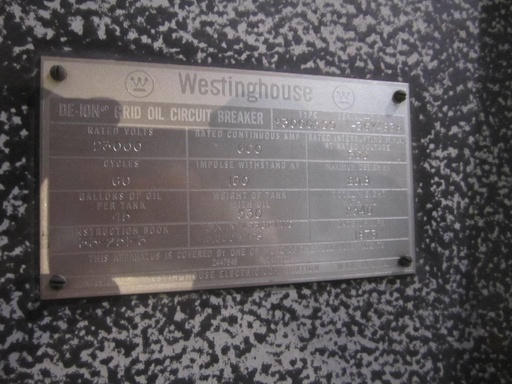

ONE (1) 600 AMP WESTINGHOUSE OIL BREAKER
TYPE 230GC500
23000 VOLT
SINGLE TANK
500 MVA
60 CYCLE
150 KV BIL
25.8 KV MAX.
45 GALLONS OIL
2,540 LBS. WITHOUT OIL
TANK WEIGHT WITH OIL - 530 LBS.
3 X 600:5 MRCT'S, CLASS C100 (1-3-5)

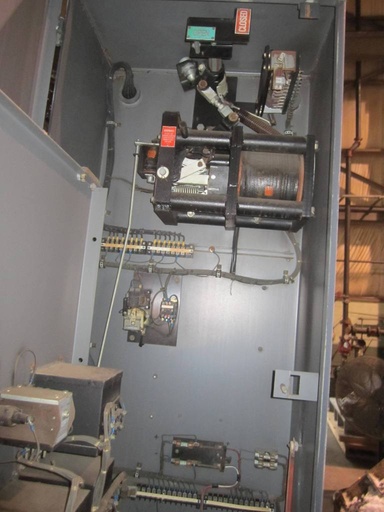

SAH4 SOLENOID MECHANISM
125 VDC CLOSE & TRIP
MFG. 1973
S/N 1-36Y4839
INST. BOOK 33-2513
