CB-17698:

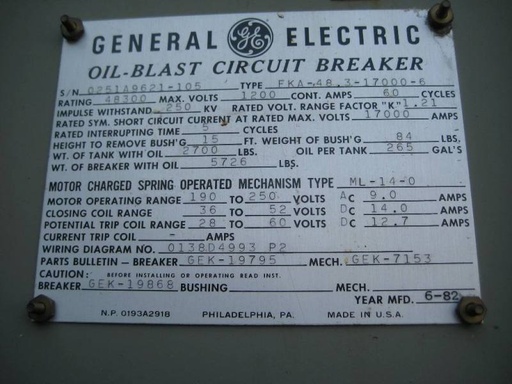

ONE (1) 1200 AMP GENERAL ELECTRIC OIL CIRCUIT BREAKER
TYPE FKA-48.3-17000-6
SINGLE TANK
48.3 KV MAX. VOLTS
60 CYCLE
250 KV BIL
VOLTAGE RANGE FACTOR "K" 1.21
5 CYCLE INTERRUPT
17 KAIC

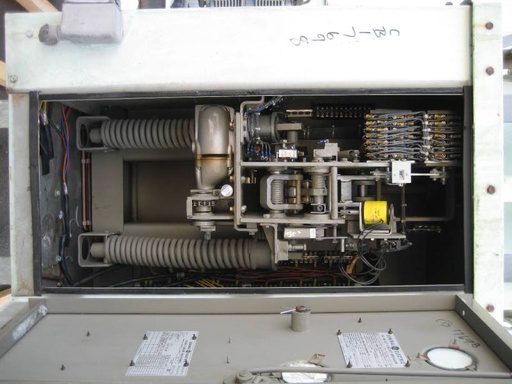

SPRING CHARGED ML-14-0 OPERATING MECHANISM
48 VDC CLOSE & TRIP
230 VAC MOTOR
WIRING DIAGRAM 0138D4993 P2
PARTS BULLETIN/BREAKER GEK-19795
MECH. GEK-7153
BREAKER GEK-19868
S/N 0251A9621-105
MFG. 1982

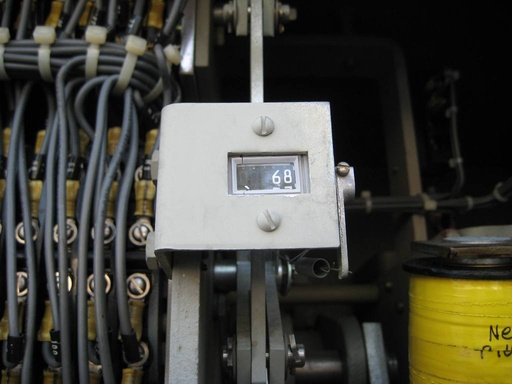

68 OPERATIONS
WEIGHT OF TANK WITH OIL - 2,700 LBS.
WEIGHT OF BUSHING - 84 LBS.
OIL PER TANK - 265 GALS.
WEIGHT OF BREAKER WITH OIL - 5,726 LBS.

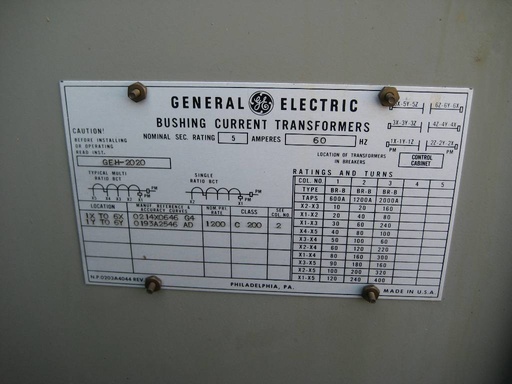

12 X 1200:5 MRCT'S, CLASS C200 (INST. GEH-2020)
11'7"H X 7'8-5/8"W X 4'6"D
