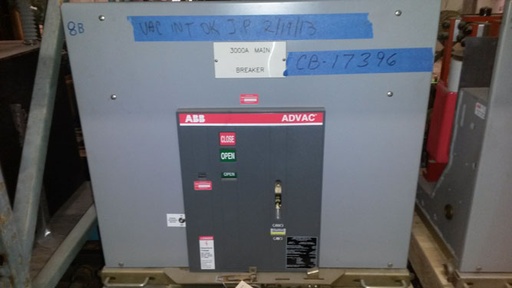

CB-17396 & A/B THRU CB-17397 & A
SIX (6) COLUMNS OF ABB INDOOR ARC-FLASH SWITCHGEAR
1 X MAIN
1 X TIE
1 X PT COMPARTMENT
2 X FEEDERS -

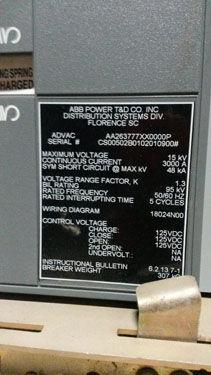

3000 AMP ADVAC
15 KV
1000 MVA
48 KA SHORT CIRCUIT
95 KV BIL
5 CYCLE
125 VDC OPEN
125 VDC CLOSE
125 VDC CHARGE
307 KG.
MFG. 2000
INS. POLE 6.2.137-1
WIRING 18024N00
CB-17396A -
1 X ABB TPN 200DR
1 X ABB MICRO SHIELD
1 X ABB 37 20 METERING
CB-17396B -
1 X PT COMPARTMENT, NO DRAWER
CB - 17397A
BLANK
