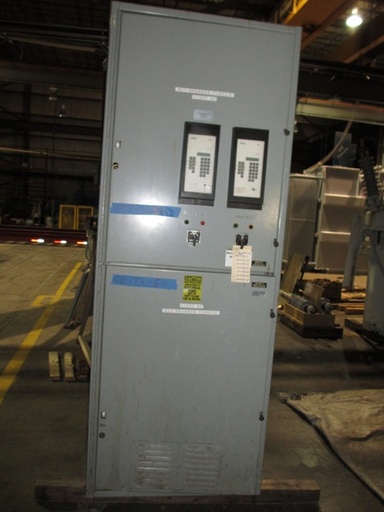

CB-17245 & A AND CB-17246 & A:
ONE (1) 2 HIGH, SINGLE COLUMN, INDOOR HOUSED GENERAL ELECTRIC SWITCHGEAR
CONTAINING:

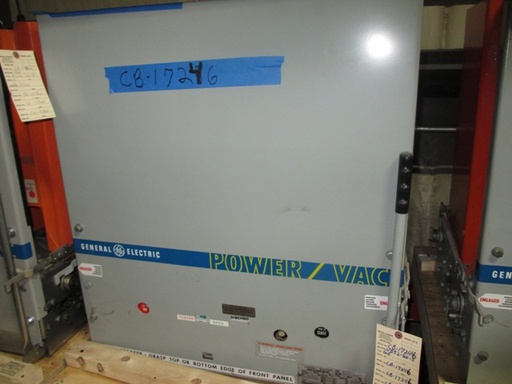

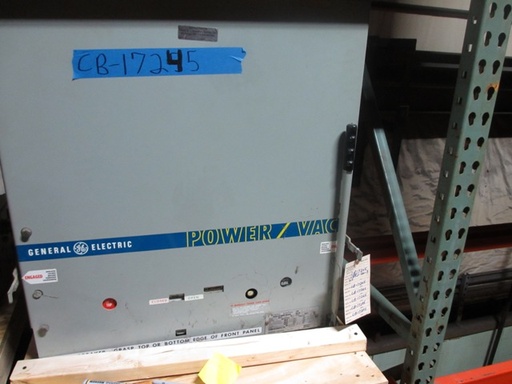

CB-17245 & CB-17246:
TWO (2) 1200 AMP GENERAL ELECTRIC VACUUM BREAKERS
TYPE VB7.2-500-3
7.2 KV
8.25 KV MAX.
60 HERTZ
95 KV BIL
5 CYCLE
33 KA INTERRUPT
1.25 VOLTAGE RANGE FACTOR
66 KA CLOSE & LATCH ABILITY
125 VDC CLOSE & TRIP
ML-17 OPERATING MECHANISM
VACUUM INTERRUPTER TYPE 41A4/41G2
INSTRUCTION BOOK GEK-39671
MFG. 01/1982

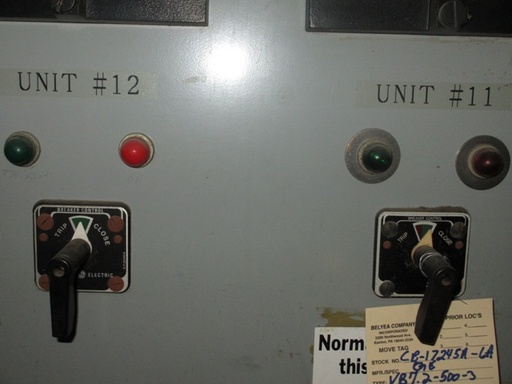

CB-17245A (TOP):
TWO (2) BREAKER CONT. SWITCHES
TWO (2) INDICATING LIGHTS (RED & GREEN)
CB-17246A (BOTTOM):
EMPTY
