CB-17090A

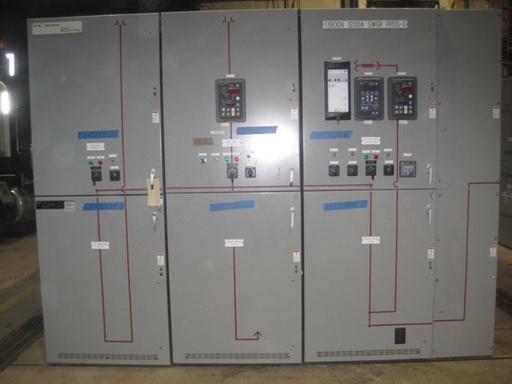

ONE (1) INDOOR HOUSED LINE-UP OF SWITCHGEAR COMPRISED OF 1 X 2 HIGH COLUMN
2 X LOCK-OUT RELAYS
1 X BREAKER SWITCH WITH INDICATING LIGHTS
1 X TEST SWITCH WITH INDICATING LIGHT
1 X DIGITRIP 3000 RELAY (50/51 OVERCURRENT)
2 X GE ELECTRO-MECHANICAL VOLTAGE RELAYS
1 X ABB TRANSFORMER PROTECTION RELAY TYPE TPU 2000R
1 X 1200 AMP BREAKER:
CB-17090
ONE (1) 1200 AMP CUTLER HAMMER/EATON VACUUM BREAKER
TYPE 150VCP-W750
15 KV MAXIMUM
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE & TRIP
125 VAC/DC CHARGING MOTOR
28 KA SHORT CIRCUIT
5 CYCLE INTERRUPT
97 KA PEAK CLOSE & LATCH
1.3 K FACTOR
375 LBS.
CB-17090B
PT DRAWER WITH 1 X SINGLE FUSED PT RATED 14.4:120
