CB-17413 & A/B:

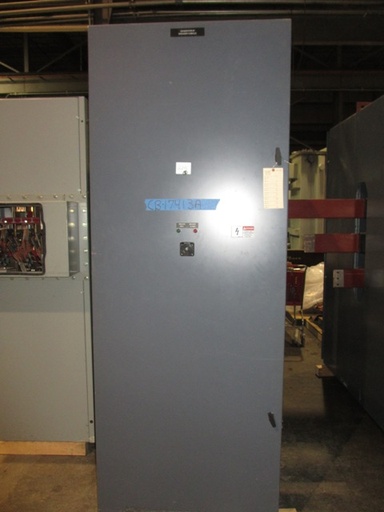

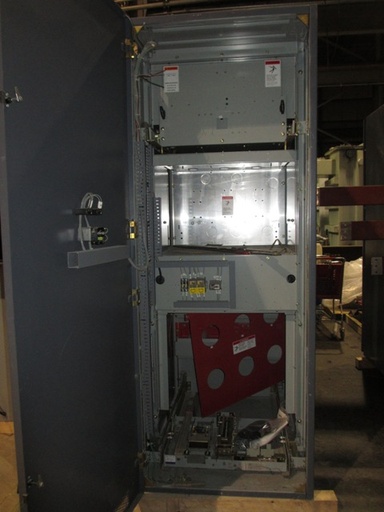

ONE (1) INDOOR HOUSED, SINGLE HIGH COLUMN OF OEM SWITCHGEAR CONTAINING:
CB-17413:
ONE (1) 1200 AMP CUTLER HAMMER VACUUM CIRCUIT BREAKER
TYPE 150VCP-W500
13.8 KV (15 KV MAX.)
60 HERTZ
95 KV BIL
18 KA
5 CYCLES
62 KA CLOSE & LATCH
125 VDC MOTOR
125 VDC CLOSE & TRIP
WL-35338B VACUUM INTERRUPTER TYPE
INSTRUCTION BOOK 32-255-1G
WIRING DIAGRAM 691C386H44
350 LBS.
135 OPERATIONS
CB-17413A:

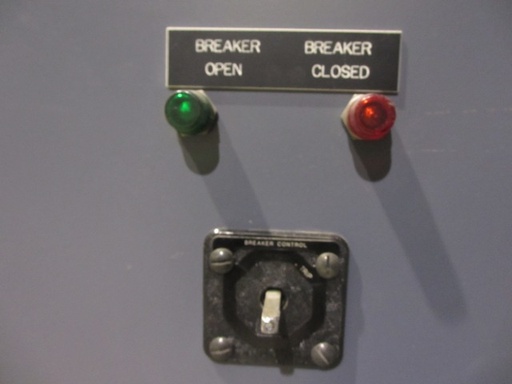

1 X BREAKER CONT. SWITCH
1 X SET OF INDICATING LIGHTS
CB-17413B:
1 X DRAW-OUT PT DRAWER
100:1 (12000:12V) DOUBLE FUSED PT
