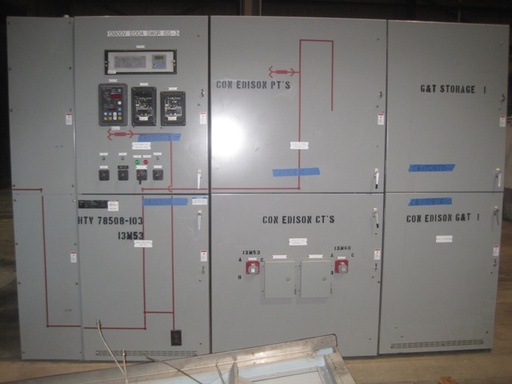

CB-17087A THRU E:

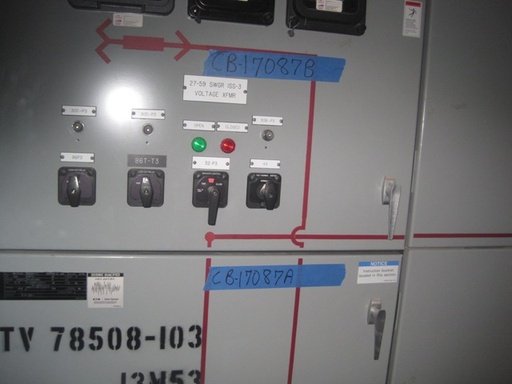

CB-17087A - BOTTOM, MOUNTED ON UPPER DOOR
2 X LOCK-OUT RELAYS
1 X BREAKER SWITCH WITH INDICATING LIGHTS
1 X TEST SWITCH
1 X DIGITRIP 3000 RELAY (50/51 OVERCURRENT)
2 X GE ELECTRO-MECHANICAL VOLTAGE RELAYS
1 X ABB TRANSFORMER PROTECTION RELAY TYPE TPU 2000R
1 X 1200 AMP BREAKER:
CB-17087
ONE (1) 1200 AMP CUTLER HAMMER/EATON VACUUM BREAKER
TYPE 150VCP-W1000
15 KV MAXIMUM
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE & TRIP
125 VAC/DC CHARGING MOTOR
37 KA SHORT CIRCUIT
5 CYCLE INTERRUPT
130 KA PEAK CLOSE & LATCH
1.3 K FACTOR
375 LBS.
CB-17087B
PT DRAWER WITH 1 X SINGLE FUSED PT RATED 14.4:120

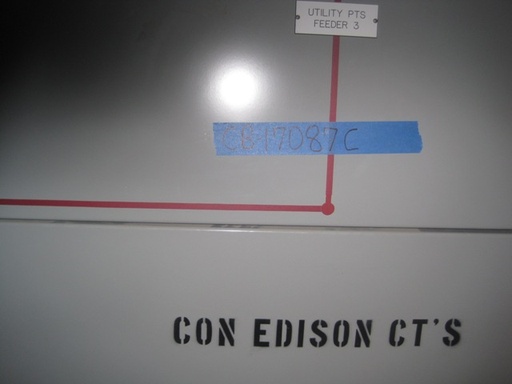

CB-17087C (POWER COMPANY METERING)
3 X CT'S
2 X LEVITON PHASING RECEPTICALS WITH FUSE BOXES

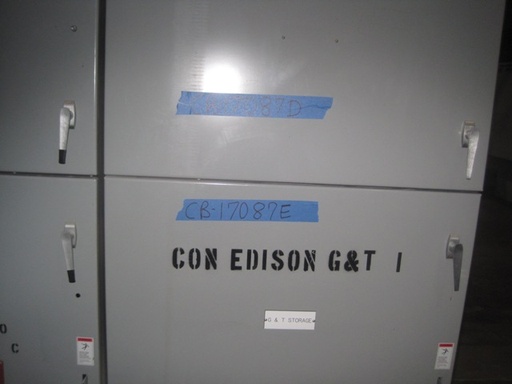

CB-17087D & CB-17087E (GROUND AND TEST STORAGE)
