1200 Amp, SQUARE D, FG2-15050-12, 15 KV, FLUARC, 240 VAC CHARGE/CLOSE, 48 VDC T   Our stock number: 39144

1200 Amp, SQUARE D, FG2-15050-12, 15 KV, FLUARC, 240 VAC CHARGE/CLOSE, 48 VDC T

Click on picture below for larger version
1200 Amp, SQUARE D, FG2-15050-12, 15 KV, FLUARC, 240 VAC CHARGE/CLOSE, 48 VDC T1200 Amp, SQUARE D, FG2-15050-12, 15 KV, FLUARC, 240 VAC CHARGE/CLOSE, 48 VDC T1200 Amp, SQUARE D, FG2-15050-12, 15 KV, FLUARC, 240 VAC CHARGE/CLOSE, 48 VDC T1200 Amp, SQUARE D, FG2-15050-12, 15 KV, FLUARC, 240 VAC CHARGE/CLOSE, 48 VDC T

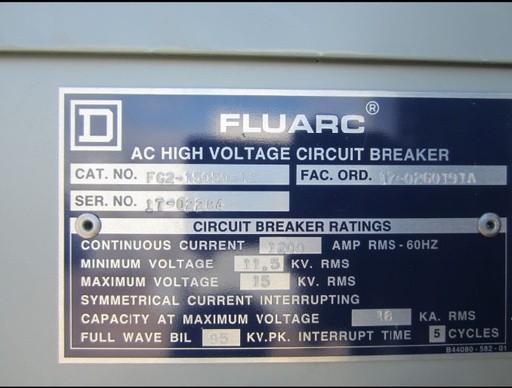

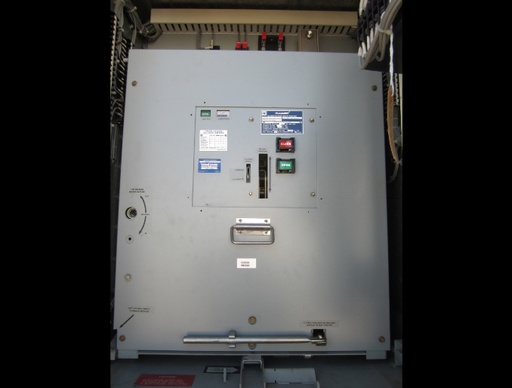

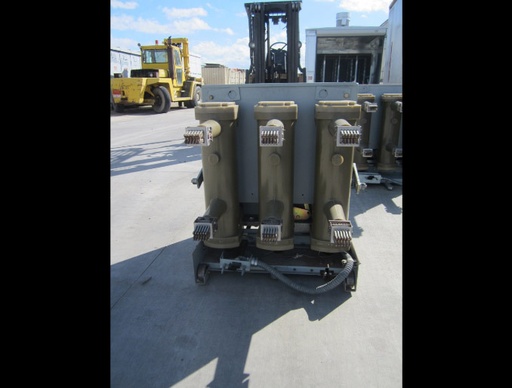

ONE (1) 1200 AMP SQUARE D FLUARC SF6 CIRCUIT BREAKER
TYPE FG2-15050-12
11.5 KV MINIMUM VOLTAGE
15 KV MAXIMUM VOLTAGE
18 KA RMS
95 KV BIL
5 CYCLE INTERRUPT

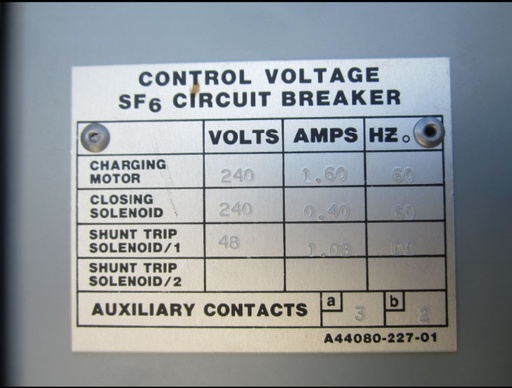

ELECTRICALLY OPERATED
240 VAC CHARGING MOTOR
240 VAC CLOSING SOLENOID
48 VDC SHUNT TRIP
DRAW-OUT
