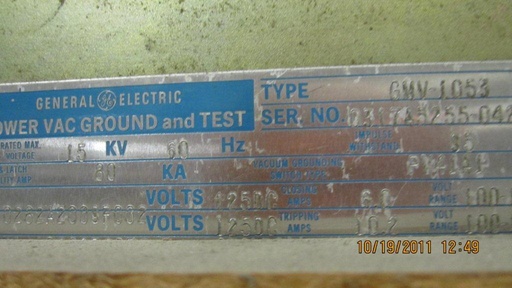

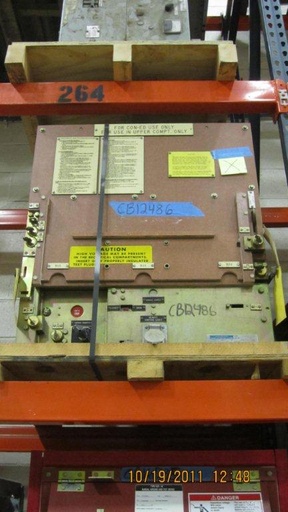

15 KV TYPE GMV-1053, GENERAL ELECTRIC, 125VDC CLOSE & TRIP,
WITH TYPE ML-17 OPERATING MECHANISM, 95 KV IMPULSE WITH
STAND, 80 KA CLOSE Y LATCH CAPABILITY, MFG. 3/84.
PV41A1 VACUUM GROUNDING SWITCH TYPE (BOTTLES)
CLOSING COIL: 0282A2009P002
TRIP COIL: 0282A2009P008
CONNECTION DIAGRAM:0209B6076
INSTRUCTION BOOK #GEK-86126, GEK-90202
1- TO BE USED WITH LINESIDE ONLY
1- TO BE USED WITH LOADSIDE ONLY
WEIGHT: 850 LBS.
