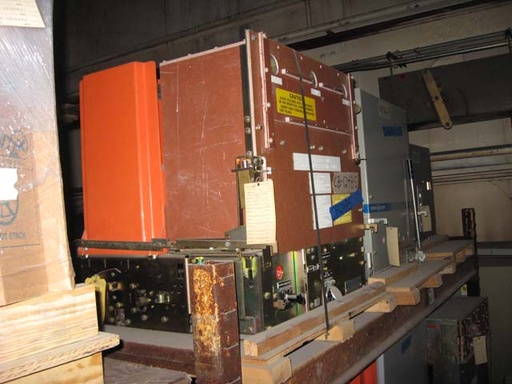

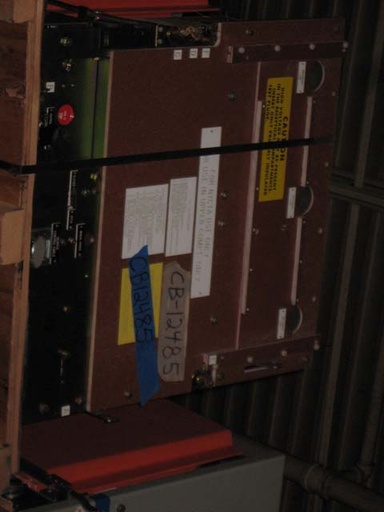

15 KV, TYPE GMV-1053, GENERAL ELECTRIC,
ELECTRICALLY OPERATED, DRAWOUT, POWER VAC
GROUND AND TEST DEVICE, 125VDC CLOSE & TRIP
WITH TYPE ML-17 OPERATING MECHANISM, 95 KV
IMPULSE WITH STAND, 80 KA CLOSE & LATCH
CAPABILITY, MFG. 3/84.
PV41A1 VACUUM GROUNDING SWITCH TYPE (BOTTLES)
CLOSING COIL: 0282A2009P002
TRIP COIL: 0282A2009P008
CONNECTION DIAGRAM: 0209B6076
INSTRUCTION BOOK: #GEK-86126, GEK-90202
1- TO BE USED WITH LINESIDE ONLY
1- TO BE USED WITH LOADSIDE ONLY
WEIGHT: 850 LBS.
