CB-18356:

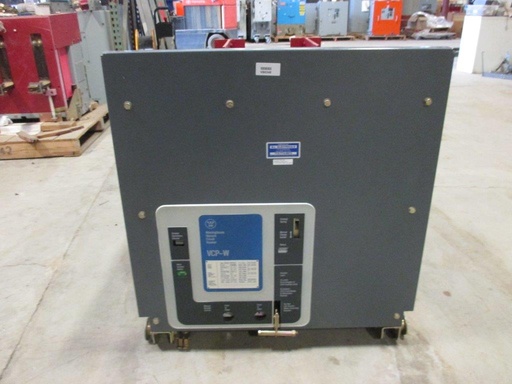

ONE (1) 3000 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER

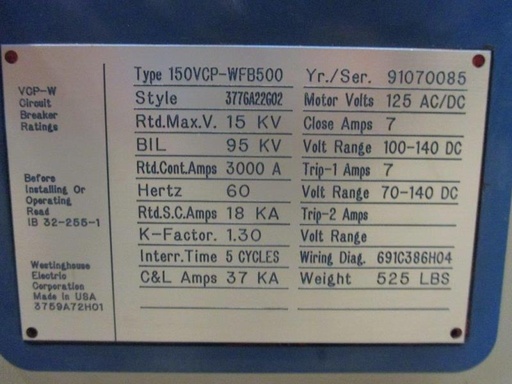

TYPE 150VCP-WFB500
STYLE 3776A22G02
15 KV MAX.
95 KV BIL
60 HERTZ
18 KA SHORT CIRCUIT
1.30 K-FACTOR
5 CYCLE INTERRUPT
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE & TRIP
125 VAC/VDC MOTOR
37 KA CLOSE & LATCH
WIRING DIAGRAM 691C386H04
525 LBS.
MFG. 1991
156 OPERATIONS
S/N 070085
IB 32-255-1
