CB-16709:

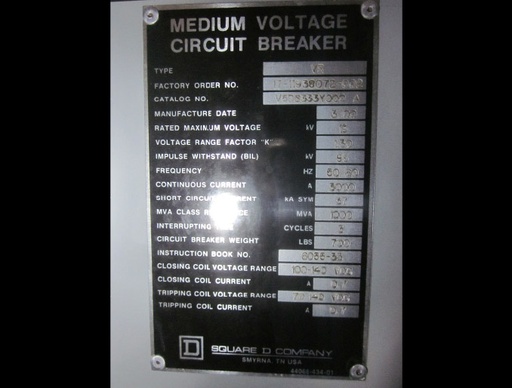

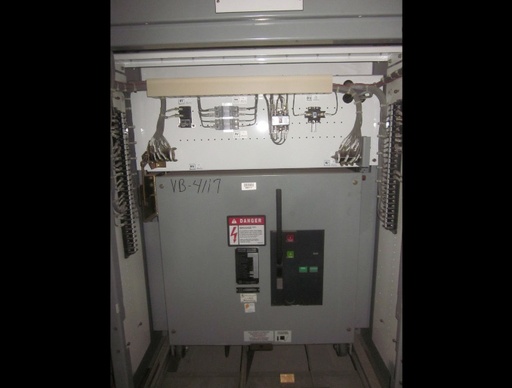

ONE (1) 3000 AMP SQUARE D VR-1000 VACUUM BREAKER
CAT. NO. V5D8333Y000 A
15 KV MAX.
1.30 VOLTAGE RANGE FACTOR K
95 KV BIL
50/60 HERTZ
37 KA SHORT CIRCUIT
1000 MVA INTERRUPT
3 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
700 LBS.

INST. BOOK 6055-33

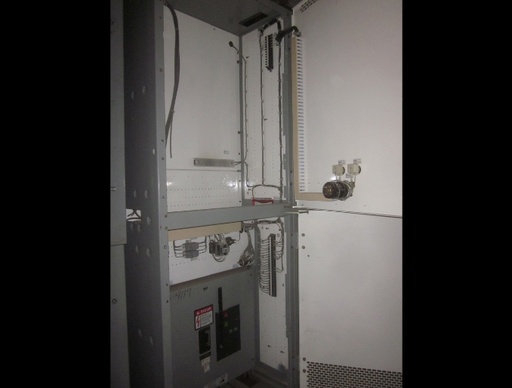

OPTIONAL CELL (A):

6 X 3000:5 CT'S
1 X SR737 RELAY

OPTIONAL PT SECTION (B):

2 X 13.2-120 PT'S
2 X 13.2-120 PT'S
