3000 Amp, GENERAL ELECTRIC, AM-13.8-1000-4H, 13.8 KV, ELECTRIC, SPRING CHRGD   Our stock number: 40698

3000 Amp, GENERAL ELECTRIC, AM-13.8-1000-4H, 13.8 KV, ELECTRIC, SPRING CHRGD

Click on picture below for larger version
3000 Amp, GENERAL ELECTRIC, AM-13.8-1000-4H, 13.8 KV, ELECTRIC, SPRING CHRGD3000 Amp, GENERAL ELECTRIC, AM-13.8-1000-4H, 13.8 KV, ELECTRIC, SPRING CHRGD3000 Amp, GENERAL ELECTRIC, AM-13.8-1000-4H, 13.8 KV, ELECTRIC, SPRING CHRGD

CB-18270

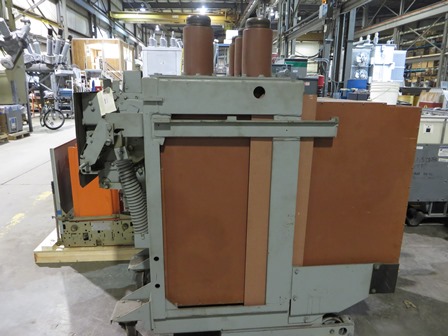

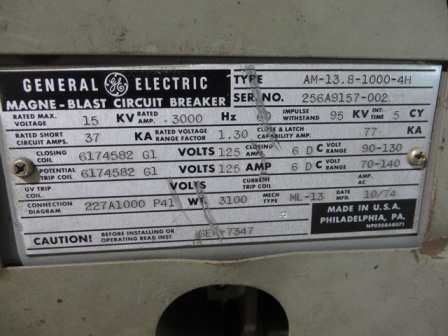

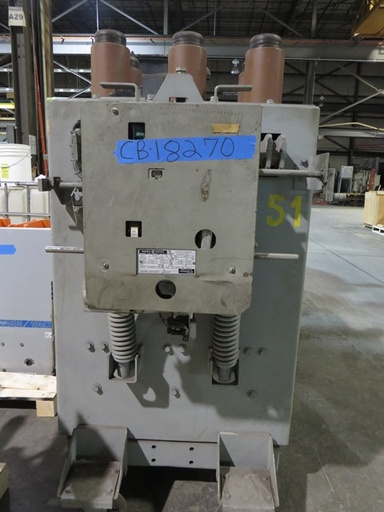

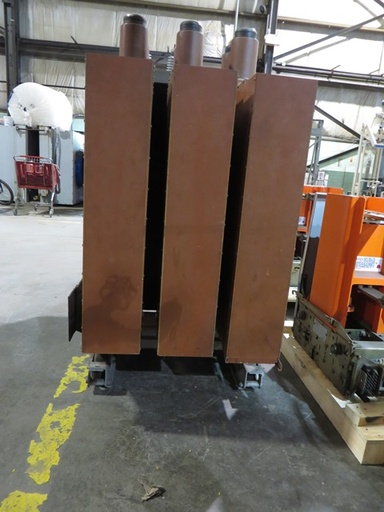

ONE (1) GENERAL ELECTRIC AIR CIRCUIT BREAKER
- 3000A
- 15KV MAX
- TYPE AM-13.8-1000-4H
- 1000MVA IC
- DRAWOUT
- ELECTRICALLY OPERATED
- 125VDC CLOSE & TRIP
- ML-13 SPRING CHARGED OPERATING MECHANISM
- 5 CYCLE INTERRUPT
- 95KV BIL
- WEIGHT: 3100 LBS
- SERIAL #: 256A9157-002
- MAGNE-BLAST CIRCUIT BREAKER
