CB-18303

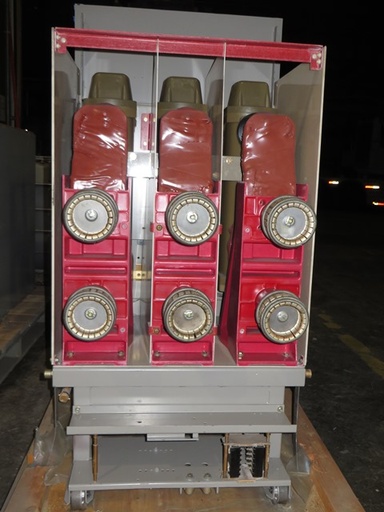

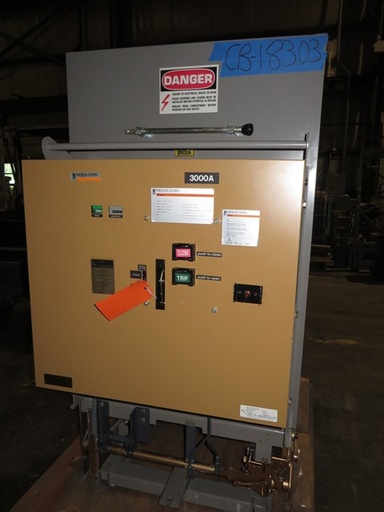

ONE (1) 3000 AMP GE MERLIN GERIN/E.S.I. UNUSED
SF6 RETROFIT CIRCUIT BREAKER FOR AN ITE 5HKV350
TYPE 5HKV-350
4160 V
3000 AMPS
ELECTRICALLY OPERATED
DRAW OUT
SHORT CIRCUIT 48KA
60 HZ.
95 KV BIL
125 VDC MOTOR, CLOSE, & TRIP
RANGE FACTOR K: 1.3

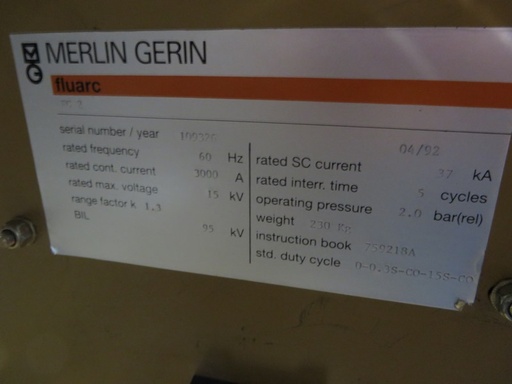

OPERATING MECHANISM: FG-2 (FLUARC)
OPERATING PRESSURE 2.0 BAR(REL)
5-CYCLE INTERRUPT
DUTY CYCLE: 0-0.3S-CO-15S-CO
SERIAL #: 109326
TOTAL WEIGHT: 508 LBS.
INSTR BK: 759218 A
