CB-19356:

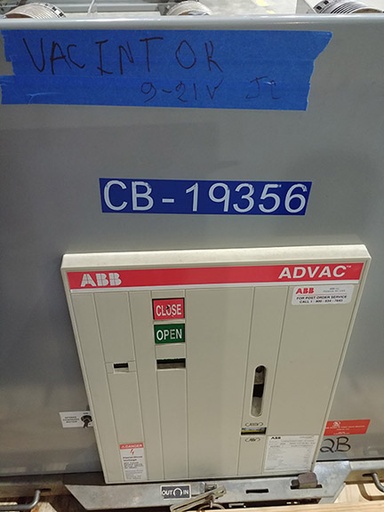

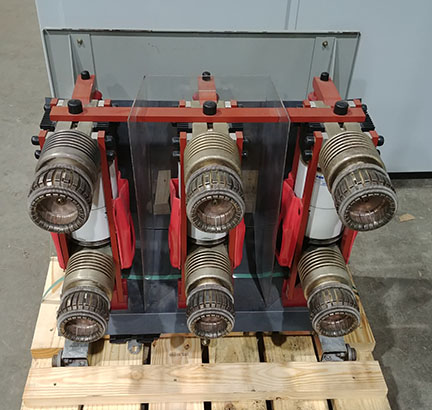

ONE (1) 3000 AMP ABB ADVAC VACUUM CIRCUIT BREAKER
MODEL AA263777XX000UP
15 KV MAX. VOLTAGE
50 KA SHORT CIRCUIT
1.0 VOLTAGE RANGE FACTOR "K"
95 KV BIL
50/60 HERTZ
5 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
GEN. 250 AMP CAP. SWITCHING
WIRING DIAGRAM - 18024N00
INSTRUCTION BULLETIN - 6.2.12.7-1

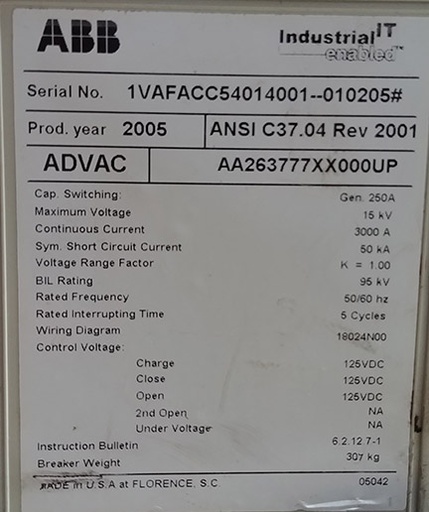

S/N 1VAFACC54014001-010205
307 KGS.
MFG. 2005
