CB-18351:

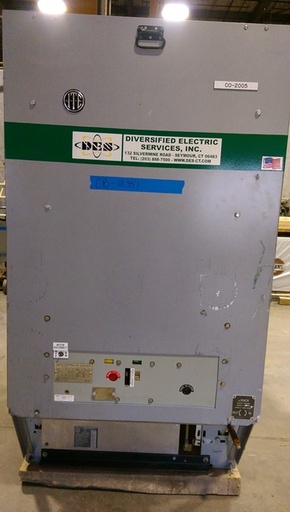

ONE (1) 3000 AMP VACUUM CIRCUIT BREAKER

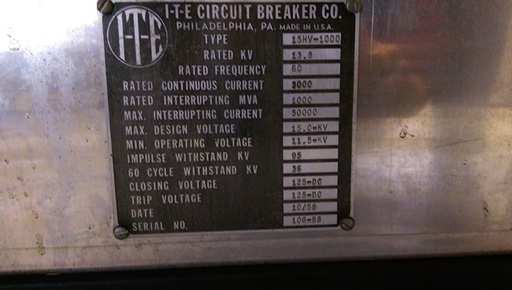

RETRO-FIT OF A VB13.8-1000-0
TYPE 15HV-1000 CON ED MODEL 2
13.8 KV
15 KV MAX. VOLTAGE
95 KV BIL
60 HERTZ
5 CYCLE INTERRUPT
37 KA SHORT CIRCUIT
VOLTAGE RANGE FACTOR K 1.30
125 VDC MOTOR
125 VDC CLOSE & TRIP
77 KA LATCH
S/N DES-5402-0409
MFG. 04/2009
CONNECTION DIAGRAM DES-5402-1
