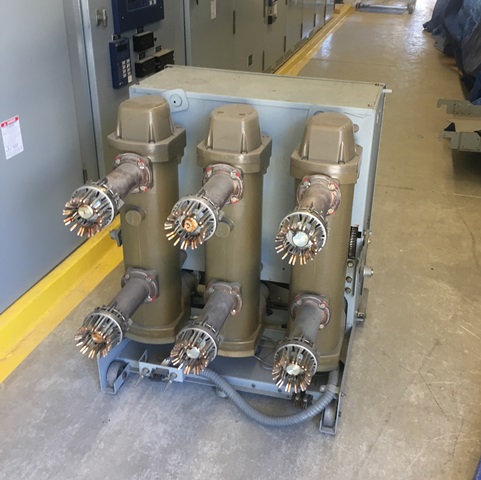

2000 Amp, SQUARE D, FLUARC, 15 KV, 750 MVA, DRAW-OUT, 5 CYCLE, PARTS ONLY:   Our stock number: 41440

2000 Amp, SQUARE D, FLUARC, 15 KV, 750 MVA, DRAW-OUT, 5 CYCLE, PARTS ONLY:

Click on picture below for larger version
2000 Amp, SQUARE D, FLUARC, 15 KV, 750 MVA, DRAW-OUT, 5 CYCLE, PARTS ONLY:

CB-18522

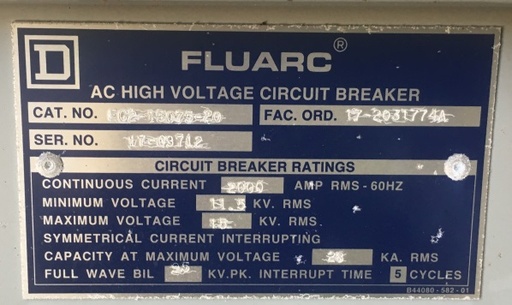

ONE (1) 2000 AMP SQUARE D FLUARC AC HIGH VOLTAGE CIRCUIT BREAKER
60 HERTZ, 5 CYCLE, 95 KV BIL.PK. INTERRUPTING TIME
DRAW-OUT, 750 MVA
CONTINUOUS CURRENT 2000 AMP RMS
MINIMUM VOLTAGE 11.5 KV. RMS
MAXIMUM VOLTAGE 15.0 KV. RMS
SYMMETRICAL CURRENT INTERRUPTING AT MAX. VOLTAGE 28 KA. RMS
SERIAL NO. 17-03712
CATALOG NO. FG2-15075-20
PARTS CAN BE USED FOR BREAKER IN VDA2 SWITCHGEAR
