2000 Amp, CUTLER HAMMER, 150 VCP-W 750, 15 KV, 2011, UL LISTED;   Our stock number: 44538

2000 Amp, CUTLER HAMMER, 150 VCP-W 750, 15 KV, 2011, UL LISTED;

Click on picture below for larger version
2000 Amp, CUTLER HAMMER, 150 VCP-W 750, 15 KV, 2011, UL LISTED;

.

CB-19507

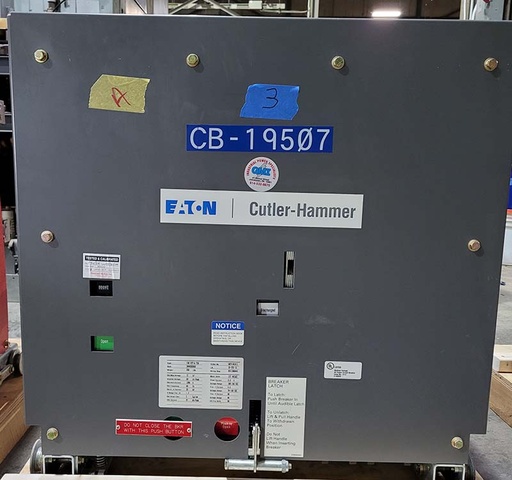

One (1) 2000A Eaton/Cutler-Hammer VCP-W Circuit Breaker - UL Listed
15 kV Rated Max. Voltage
95 kV BIL
60 Hertz
28 kA Rated Short Circuit Current
Voltage Range Factor "K" 1.30
5 Cycles Rated Interrupt Time
Style: 3776A24G02
125 VDC/AC Motor
125 VDC Close & Trip
Yr/Ser No: 071102431
Weight: 410 LBS.
Wiring Diagram: 691C386H44
IB: 32-255-1G
Operations: 88
