SWITCHGEAR 43966
CB-19170:

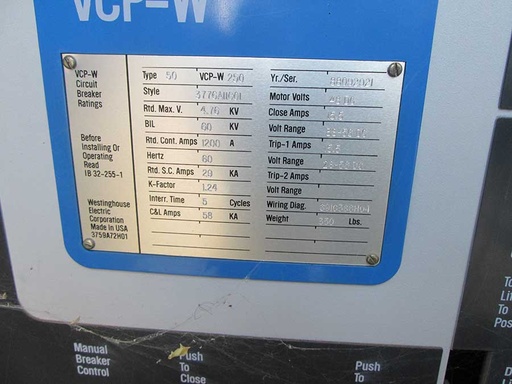

ONE (1) 1200 AMP WESTINGHOUSE 50VCPW-250 VACUUM BREAKER
4760 VOLT
STYLE 3776A11G01
60 KV BIL
60 HERTZ
29 KA SHORT CIRCUIT
1.24 K FACTOR
5 CYCLE INTERRUPT
58 KA CLOSE & LATCH
ELECTRICALLY OPERATED
48 VDC CLOSE & TRIP
48 VDC MOTOR
DRAW-OUT
350 LBS.
INSTRUCTION BOOK 32-255-1C
WIRING DIAGRAM 691C386H04
MFG. 1988
S/N 092921
