1200 Amp, SQUARE D, FLUARC, 15 KV, 750 MVA, DRAW-OUT, 5 CYCLE:   Our stock number: 41437

1200 Amp, SQUARE D, FLUARC, 15 KV, 750 MVA, DRAW-OUT, 5 CYCLE:

Click on picture below for larger version
1200 Amp, SQUARE D, FLUARC, 15 KV, 750 MVA, DRAW-OUT, 5 CYCLE:

CB-18519

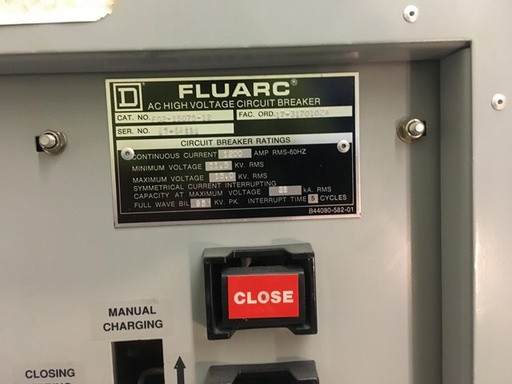

ONE (1) 1200 AMP SQUARE D FLUARC AC HIGH VOLTAGE CIRCUIT BREAKER
60 HERTZ, 5 CYCLE, 95 KV BIL.PK. INTERRUPTING TIME
DRAW-OUT, 750 MVA, SERIAL NO. 17-04631
CONTINUOUS CURRENT 1200 AMP RMS
MINIMUM VOLTAGE 11.5 KV. RMS
MAXIMUM VOLTAGE 15.0 KV. RMS
SYMMETRICAL CURRENT INTERRUPTING AT MAX. VOLTAGE 28 KA. RMS
CATALOG NO. FG2-15075-12
FOR USE WITH VAD2 SWITCHGEAR
