CB-18903:

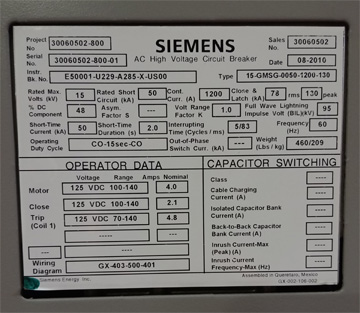

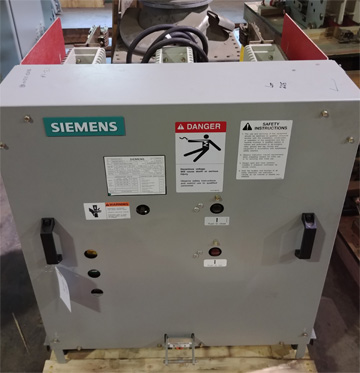

ONE (1) 1200 AMP SIEMENS VACUUM CIRCUIT BREAKER
TYPE 15-GMSG-0050-1200-130
3 PHASE
60 HERTZ
15 KV MAX. VOLTS
50 KA SHORT CIRCUIT
78 KA CLOSE & LATCH
130 RMS PEAK
1.0 VOLT RANGE FACTOR K
95 KV BIL
50 KA SHORT TIME CURRENT
5 CYCLE INTERRUPT
125 VDC CLOSE/TRIP/MOTOR
DRAW-OUT
WIRING DIAGRAM GX-403-500-401
INST. BOOK E50001-U229-A285-X-US00
MFG. 2010
S/N 30060502-800-01
460 LBS.
