1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;   Our stock number: 34183

1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;

Click on picture below for larger version
1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;
1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;1200 Amp, POWERCON, V, 38 KV, 1986, EO/DO, 125VDC CLOSE & TRIP;

CB-16115:

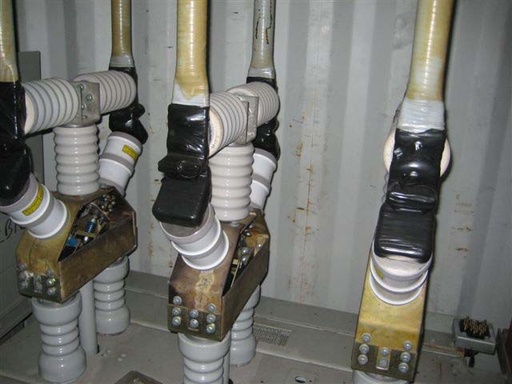

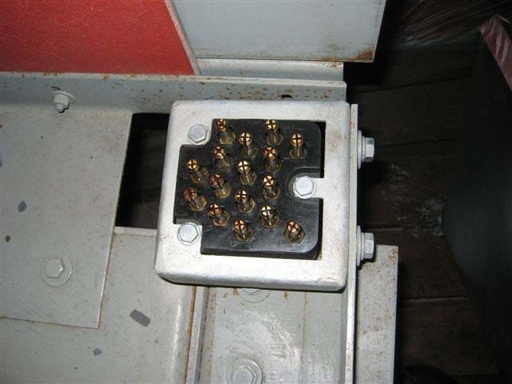

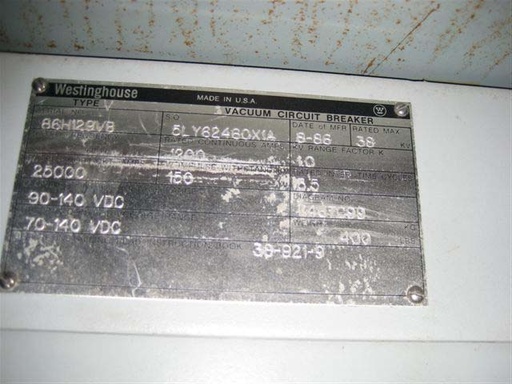

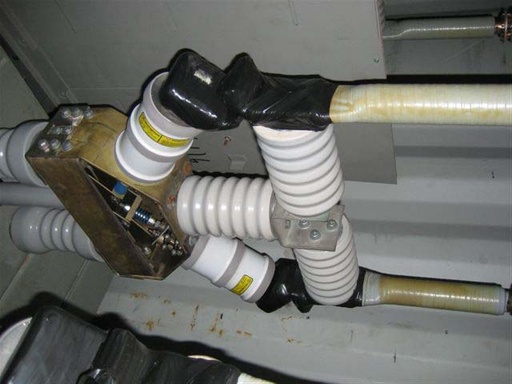

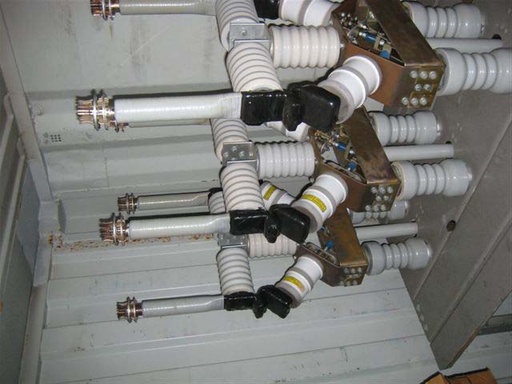

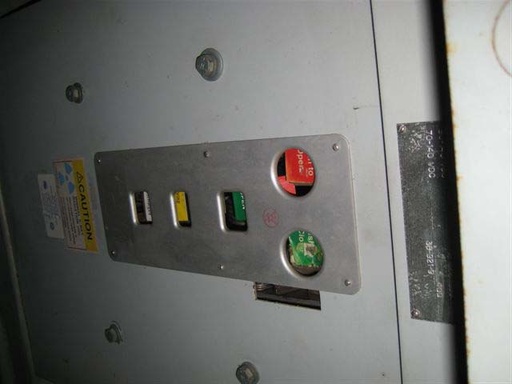

ONE (1) - POWERCON VACUUM CIRCUIT BREAKER
- 38 KV MAX
- 1200 AMP
- TYPE V
- DRAWOUT
- ELECTRICALLY OPERATED
- 125 VDC CLOSE & TRIP
- 25 KA SHORT CIRCUIT
- 150 KV BIL
- 3.5 CYCLE INTERRUPT
- WEIGHT - 400 LBS.
- DIAGRAM #7467C99
- S/N 86J113VB
- DIMENSIONS - 38"W X 58"L X 78"H MEASURING FROM
FACEPLATE SIDE TO SIDE, FROM FACEPLATE TO THE REAR
OF THE CARRIAGE AND FROM THE FLOOR TO THE TOP OF THE
STABS
