1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-2, 15 KV, ELECTRIC, 125VDC C&T:   Our stock number: 40696

1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-2, 15 KV, ELECTRIC, 125VDC C&T:

Click on picture below for larger version
1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-2, 15 KV, ELECTRIC, 125VDC C&T:1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-2, 15 KV, ELECTRIC, 125VDC C&T:

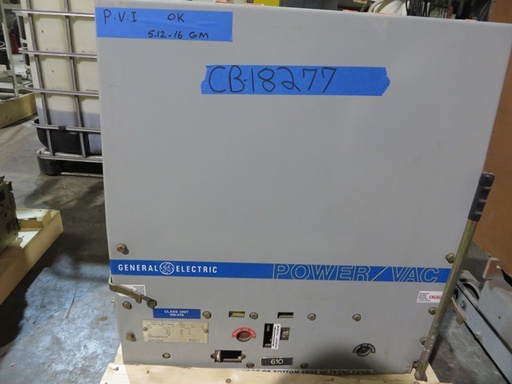

CB-18277

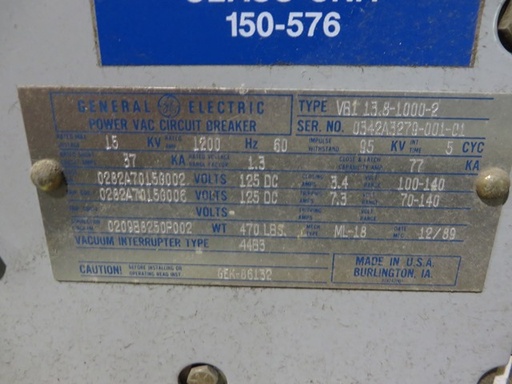

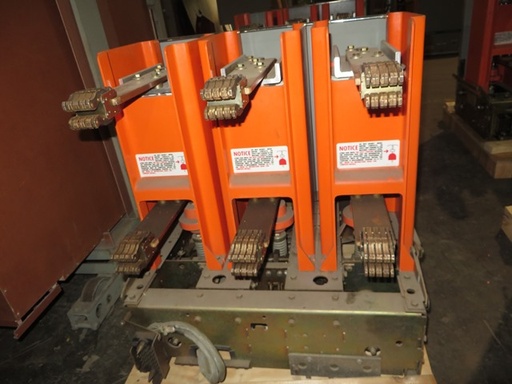

ONE (1) GE VACUUM CIRCUIT BREAKER
- TYPE VB1-13.8-1000-2
- 1200A
- 15KV MAX
- 3 PHASE / 60HZ
- 95KV BIL
- 5 CYCLE INTERRUPT
- 37kA SHORT CIRCUIT
- 77kA CLOSE & LATCH
- ELECTRICALLY OPERATED
- 125VDC CLOSE & TRIP
- 125VDC CHARGING MOTOR
- ML-18 OPERATING MECHANISM
- VAC. INTER. TYPE: 44B3
- WEIGHT: 470 LBS
- SERIAL # 0342A3279-001-01
