1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-1, 15 KV, ELECTRIC, 125VDC C&T:   Our stock number: 40695

1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-1, 15 KV, ELECTRIC, 125VDC C&T:

Click on picture below for larger version
1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-1, 15 KV, ELECTRIC, 125VDC C&T:1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-1, 15 KV, ELECTRIC, 125VDC C&T:

CB-18275

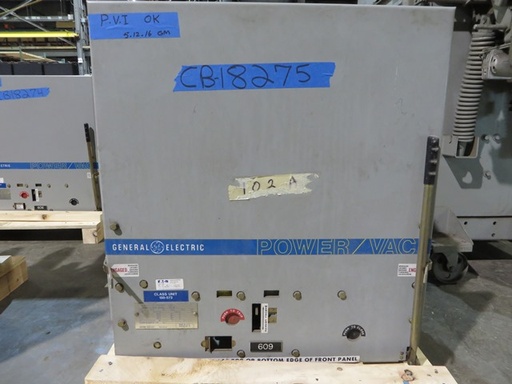

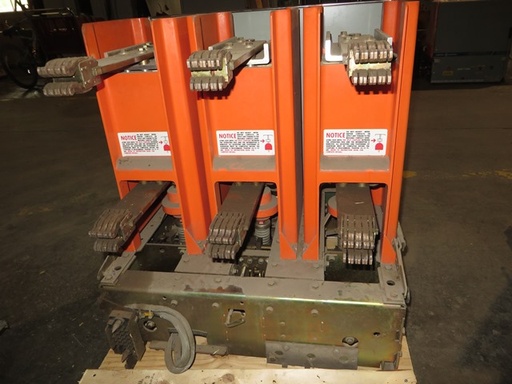

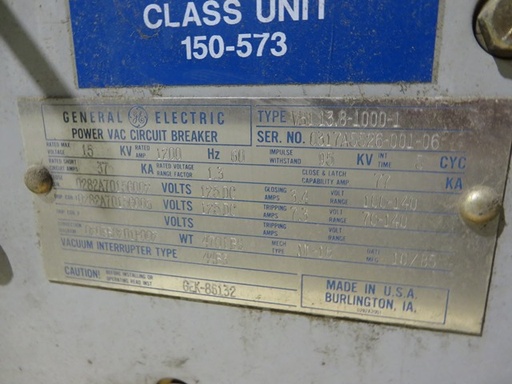

ONE (1) GE VACUUM CIRCUIT BREAKER
- TYPE VB1-13.8-1000-1
- 1200A
- 15KV MAX
- 3PH/60HZ
- 95KV BIL
- 5 CYCLE INTERRUPT
- 37kA SHORT CIRCUIT
- 77kA CLOSE & LATCH
- ELECTRICALLY OPERATED
-125VDC CLOSE & TRIP
-125VDC CHARGING MOTOR
- ML-18 OPERATING MECHANISM
-VAC. INTER. TYPE: 44B3
-WEIGHT 470 LBS
-SERIAL# 0317A5526-001-06
