CB-18295

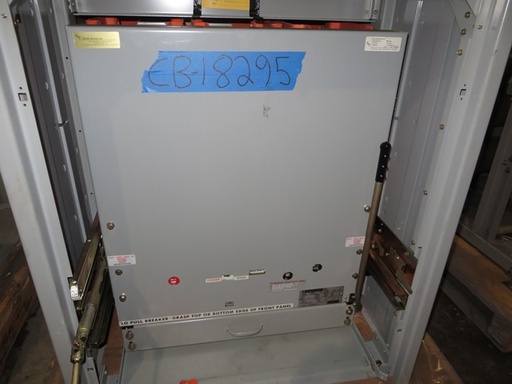

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER UNUSED

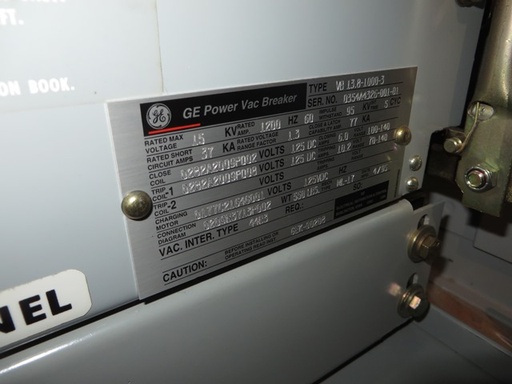

TYPE VB1-13.8-1000-3
15 KV
1200A
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
37 KA SHORT CIRCUIT
1.3 RATED VOLTAGE RANGE FACTOR
77 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
ML-17 MECHANISM
44B3 VACUUM INTERRUPT
0209B3713P002 CONNECTION DIAGRAM
INST. BOOK GEK-90208
SERIAL #: 0354A4666-001-01
550 LBS.
