1200 Amp, GE, VB1-13.8-750-2, 15 KV, E/O, D/O, 125 AC CLOSE, 125 DC TRIP, ML-18   Our stock number: 44437

1200 Amp, GE, VB1-13.8-750-2, 15 KV, E/O, D/O, 125 AC CLOSE, 125 DC TRIP, ML-18

Click on picture below for larger version
1200 Amp, GE, VB1-13.8-750-2, 15 KV, E/O, D/O, 125 AC CLOSE, 125 DC TRIP, ML-181200 Amp, GE, VB1-13.8-750-2, 15 KV, E/O, D/O, 125 AC CLOSE, 125 DC TRIP, ML-18

<

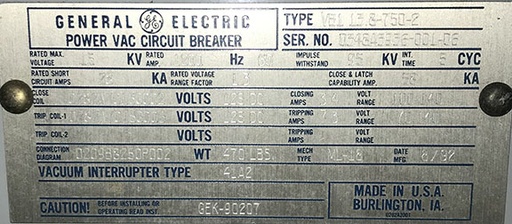

CB-19377:<
<

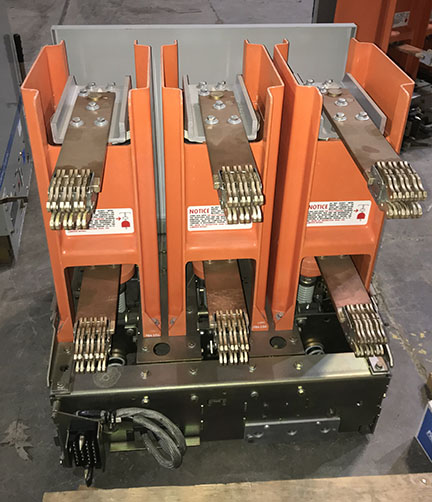

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER<
TYPE VB1-13.8-750-2<
13.8 KV
15 KV MAX.<
60 HZ
95 KV BIL<
5 CYCLE
ML-18 MECHANISM<
ELECTRICALLY OPERATED<
DRAW OUT<
470 LBS.<
125 AC CLOSE<
125 DC TRIP
28 KA SHORT CIRCUIT<
1.3 VOLTAGE RANGE FACTOR<
37 KA CLOSE & LATCH<
41A2 VACUUM INTERRUPTER TYPE
CONNECTION DIAGRAM: 0209B8250P002
INST. BOOK: GEK-90207
S/N 0348A3936-001-06
