1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 240 AC CLOSE, 340 DC TRIP, ML-18   Our stock number: 44435

1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 240 AC CLOSE, 340 DC TRIP, ML-18

Click on picture below for larger version
1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 240 AC CLOSE, 340 DC TRIP, ML-181200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 240 AC CLOSE, 340 DC TRIP, ML-18

4/28/22 - Rental Job# 59760 to Resa. Not sure if this is a three
month minimum.
<

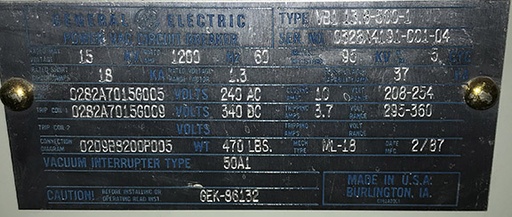

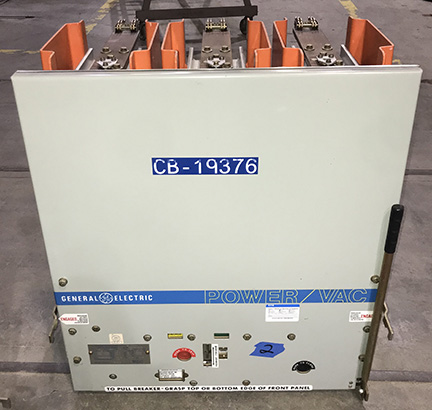

CB-19376:<
<

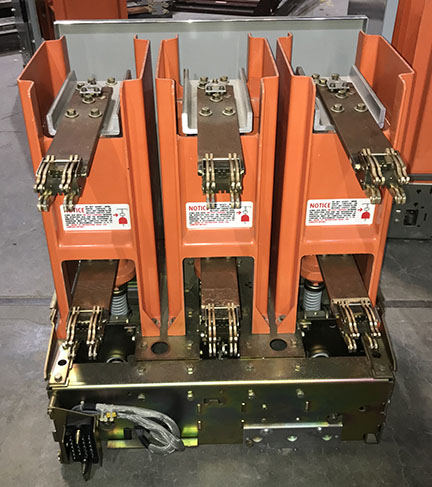

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER<
TYPE VB1-13.8-500-1<
13.8 KV
15 KV MAX.<
60 HZ
95 KV BIL<
5 CYCLE
ML-18 MECHANISM<
ELECTRICALLY OPERATED<
DRAW OUT<
470 LBS.<
240 AC CLOSE<
340 DC TRIP<
18 KA SHORT CIRCUIT<
1.3 VOLTAGE RANGE FACTOR<
37 KA CLOSE & LATCH<
50A1 VACUUM INTERRUPTER TYPE
CONNECTION DIAGRAM: 0209B8200P005
INST. BOOK: GEK-86132
S/N 0328A4191-001-04
