1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 120VAC CLOSE CAP TRIP   Our stock number: 42433

1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 120VAC CLOSE CAP TRIP

Click on picture below for larger version

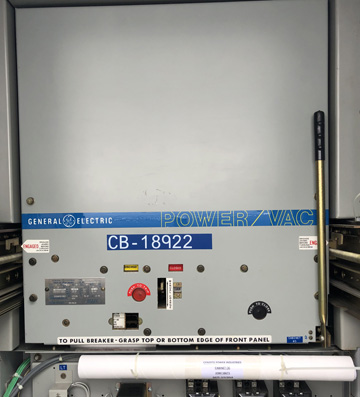

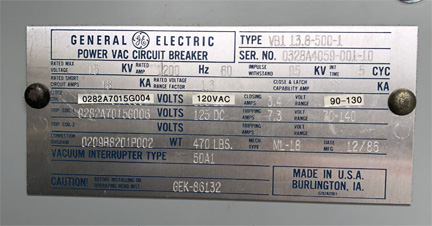

1200 Amp, GE, VB1-13.8-500-1, 15 KV, E/O, D/O, 120VAC CLOSE CAP TRIP

CB-18922

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
13.8 KV
15 KV MAX
3 PHASE
95 KV BIL
5 CYCLE INTERRUPT
18 KA SHORT CIRCUIT
37 KA CLOSE & LATCH
1.3 VOLTAGE RANGE FACTOR
ELECTRICALLY OPERATED - 120 VAC CLOSE CAP TRIP
DRAW-OUT
ML-18 OPERATING MECHANISM
VACUUM INTERRUPTER TYPE 50A1
S/N 0328A4059-001-10
157 OPERATIONS
470 LBS.
