CB-17913:

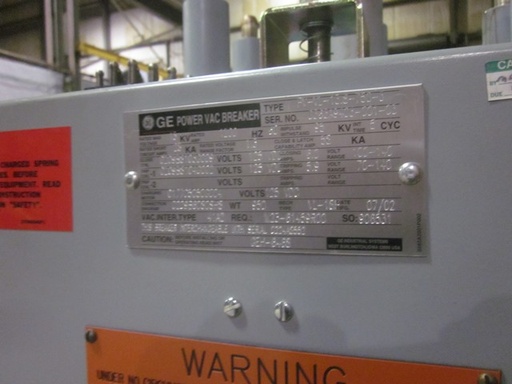

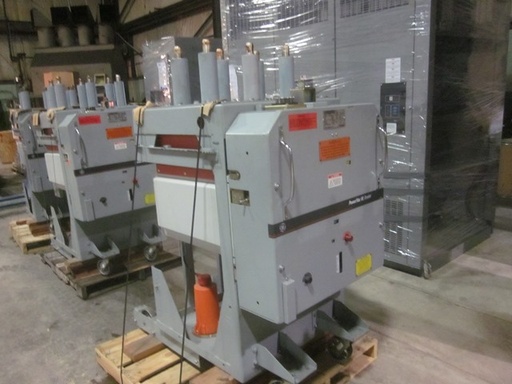

ONE (1) 1200 AMP GENERAL ELECTRIC POWER VAC CIRCUIT BREAKER
REPLACES AM BREAKERS
HIGH BOY
TYPE PV-VL-13.8-750-3
15 KV MAX. VOLTAGE
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
28 KA SHORT CIRCUIT
1.3 VOLTAGE RANGE FACTOR
58 KA CLOSE & LATCH
125 VDC CLOSE
CLOSE COIL 0209B8103G009
125 VDC TRIP
TRIP COIL 0209B8104G002
125 VDC CHARGING MOTOR
CHARGING MOTOR 0177C5050G004
CONNECTION DIAGRAM 0209B6080SH8
950 LBS.
VL-18H MECHANISM TYPE
MFG. 2002
VACUUM INTERRUPTER TYPE 41A2
OPERATING MANUAL GEH-6468
S/N 0363A9403-001-03
