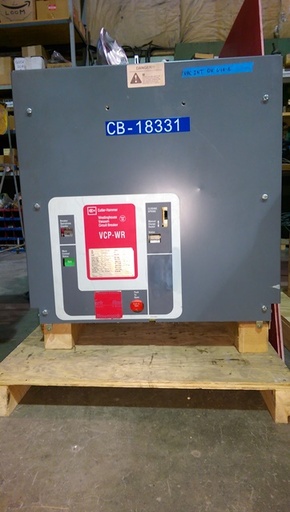

CB-18331

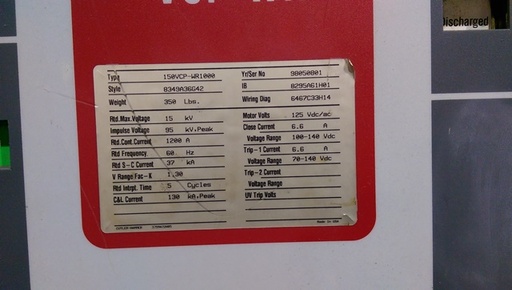

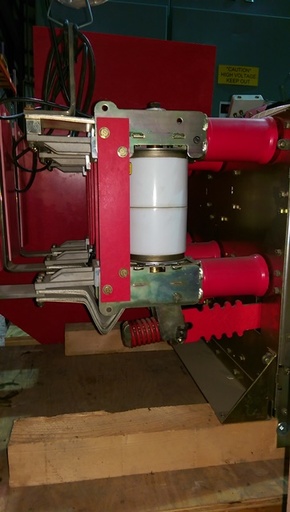

ONE (1) 1200 AMP Cutler Hammer-Westinghouse Vacuum Circuit Breaker
Retrofit - Type: 150VCP-WR1000
Style: 8349A36G42
Rated Max. Voltage - 15 KV
Impulse Voltage - 95 KV, Peak
Rated Frequency - 60 Hz
Rated S-C Current 37 KA
V Range Fac-K 1.30
Rated Interrupt Time - 5 Cycles
Serial Number: 98050801
Stationery Mount
Motor Volts - 125 VDC/AC
Close Voltage Range: 100-140 VDC
Trip Voltage Range: 70-140 VDC
Weight: 350 lbs.
Wiring Diagram: 6467C33H14
IB: 8295A61H01
