1200 Amp, CUTLER HAMMER, 150 VCP-W 750, 15 KV, UL LISTED, CIRCUIT BREAKER   Our stock number: 44540

1200 Amp, CUTLER HAMMER, 150 VCP-W 750, 15 KV, UL LISTED, CIRCUIT BREAKER

Click on picture below for larger version

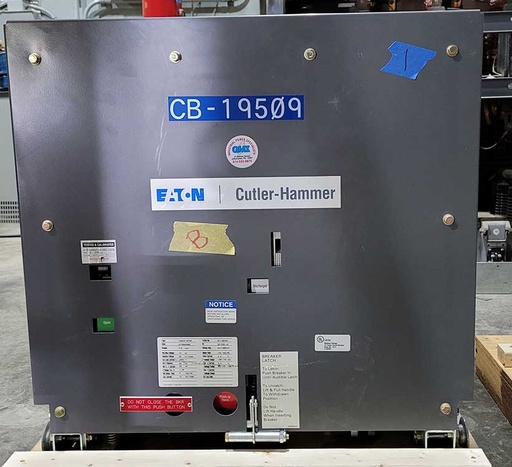

1200 Amp, CUTLER HAMMER, 150 VCP-W 750, 15 KV, UL LISTED, CIRCUIT BREAKER


CB-19509

ONE (1) 1200A Eaton/Cutler-Hammer VCP-W Circuit Breaker - UL Listed
15 kV Rated Max. Voltage
95 kV BIL
60 Hertz
28 kA Rated Short Circuit Current
Voltage Range Factor "K" 1.3
5 Cycles Rated Interrupt Time
Style: 3A40369G02
125 VDC/AC Motor
125 VDC Close & Trip
Yr/Ser No: 071102431
Weight: 350 LBS.
Wiring Diagram: 691C386H44
IB: 32-255-1G
OPERATIONS: 96
